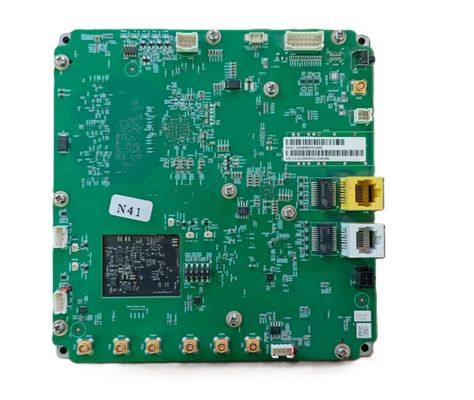

Sub 6 GHz 5G Baseband Board DDR4/DDR5 Up To 64 GB Memory

Brand Name:	WSD
Model Number:	WSD-5G
MOQ:	5
Price:	Price Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Document:

5G Baseband Board Product S...y).pdf

Frequency Bands:

Sub-6 GHz: N1, N3, N5, N7, N8, N20, N28, N38, N41, N77, N78, N79

Bandwidth:

100 MHz

MIMO Support:

2T2R

Processor:

High-performance Multi-core DSP + FPGA Co-processing

Memory:

DDR4/DDR5, Up To 64 GB

Interface:

CPRI/eCPRI, Ethernet 10/25/100 GbE, PCIe Gen4

Highlight:

5G Baseband Board

Sub 6 GHz Baseband Board

Product Description

5G Baseband Board (Sub-6 GHz Only)

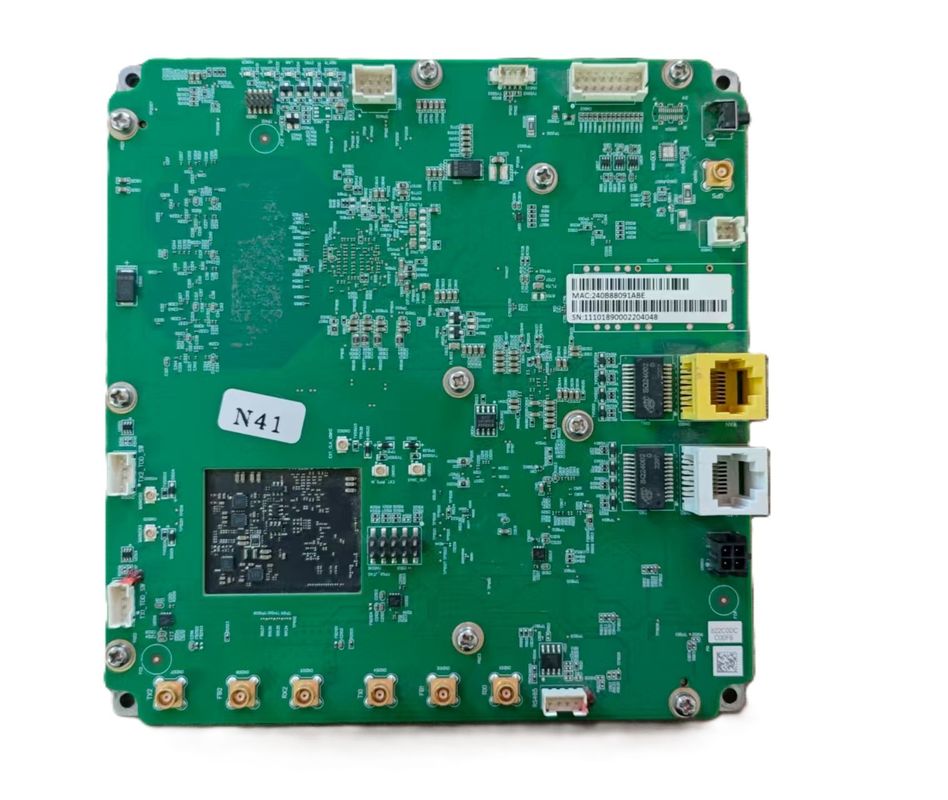

Sub 6 GHz 5G Baseband Board DDR4/DDR5 Up To 64 GB Memory 0

1. Product Overview

The 5G Baseband Board provides high-performance baseband processing for 5G NR Sub-6 GHz networks. It is designed for small cell, macro cell, and testbed applications, offering reliable performance and flexible configuration without mmWave support.

Key Features:

Supports Sub-6 GHz 5G NR frequency bands
High-performance multi-core DSP + FPGA architecture
Low-latency baseband processing
Scalable modular design for different deployment scenarios
Supports advanced MIMO and carrier aggregation

2. Technical Specifications

Parameter	Specification
Frequency Bands	Sub-6 GHz: n1, n3, n5, n7, n8, n20, n28, n38, n41, n77, n78, n79
Bandwidth	100 MHz
MIMO Support	2T2R
Processor	High-performance multi-core DSP + FPGA co-processing
Memory	DDR4/DDR5, up to 64 GB
Interface	CPRI/eCPRI, Ethernet 10/25/100 GbE, PCIe Gen4
Power Supply	12V/24V DC, typical consumption ≤ 70 W
Operating Temperature	-20°C to +70°C
Dimensions	200 mm × 150 mm × 40 mm
Weight	~1.2 kg
Standards Compliance	3GPP Release 15/16, O-RAN compatible

3. Functional Features

5G NR Processing: Supports subframe and slot-level processing for FDD and TDD modes.
Carrier Aggregation: Enables multi-carrier aggregation for enhanced throughput.
MIMO Support: Supports advanced MIMO schemes up to 8T8R.
Low-Latency Processing: Optimized DSP + FPGA architecture for real-time processing.
Remote Management: Supports SNMP, Web GUI, and CLI-based monitoring and control.
Software Upgrade: OTA and local firmware upgrade supported.
