| Brand Name: | WSD |
| Model Number: | WS-LTE |
| MOQ: | 5 |
| Price: | Price Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 100 |

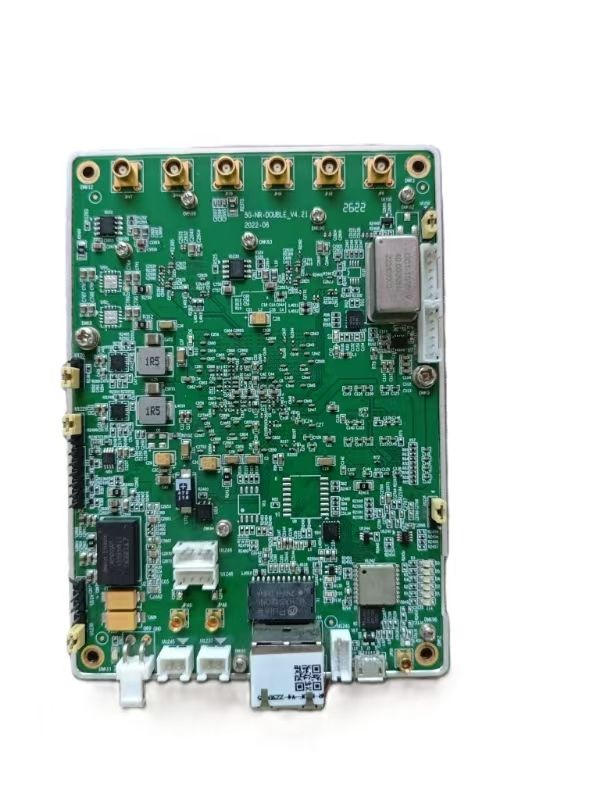

4G Baseband Board
Our 4G baseband board adopts an advanced FPGA + ARM software-defined radio (SDR) architecture, supporting both LTE-FDD and LTE-TDD standards. It can handle high-speed data processing and user access management across multiple carriers and frequency bands. The board features high performance, low power consumption, and modular design, allowing flexible integration with power amplifiers, RF front-end modules, and master control systems. It is suitable for applications in public security, transportation, telecom operators, and research.
Supports LTE-FDD and LTE-TDD standards
Multi-carrier processing capability
High-performance baseband signal processing
Low power consumption, modular design
Customizable frequency bands according to deployment region
Supports GPS and network synchronization
Multiple expansion interfaces for RF, PA, and master control modules
Operable in industrial temperature and humidity ranges
|
Parameter |
Typical Value |
Notes |
|
Supported Standards |
LTE-FDD / LTE-TDD |
Support major LTE bands |
|
Operating Frequency Bands |
Band 1 / 3 / 7 / 8 / 20 |
Customizable based on client requirements |
|
Maximum Carrier Count |
2~4 |
Can handle multiple carriers simultaneously |
|
Operating Bandwidth |
5 / 10 / 20 MHz |
Configurable |
|
Receiver Sensitivity |
–100dBm |
Typical value |
|
Transmit Power (Baseband Output) |
0 dBm ~ 23 dBm |
Used with power amplifier |
|
Synchronization Mode |
GPS / Network |
Supports GPS and network sync |
|
Interface Type |
PCIe / Ethernet / USB |
For master control communication or data backhaul |
|
Signal Processing Capability |
≥ 80 UE/min |
Maximum supported users |
|
Power Consumption |
< 10 W |
Typical consumption |
|
Operating Temperature |
–30℃ ~ +70℃ |
Industrial grade |
|
Operating Humidity |
10% ~ 90% RH |
Operating humidity |
|
Dimensions |
200 × 150 × 30 mm |
Board size |
|
Weight |
0.8 kg |
Board weight |
|
Expansion Interfaces |
GPIO / SMA / Optical |
Can connect RF modules or antennas |
· Public security and surveillance systems
· Urban traffic monitoring and ITS
· Mobile network testing and R&D
· Research and laboratory environments
