| Brand Name: | WSD |
| Model Number: | SIM8260 |
| MOQ: | 10 |
| Price: | ＄1000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |
5G Sub-6G Module
SIM8260G-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.With a rich protocols, it is integrated with interfaces such as PCIe, USB3.1, GPIO etc. This module provides applications with great flexibility and ability of integration. SIM8260G-M2 adopts M2 form factor. AT commands of SIM8260G-M2 are compatible with SIM8200 series modules. This also minimizes costs for customer and shortens time to market.It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.
Product Advantages
- M2 form factor with various interfaces
- Huge data transmission
- AT commands of SIM8260G-M2 compatible with SIM8200 series modules
Product Details
| Product | SIM8260G-M2 |
| Form Factor | M.2 |

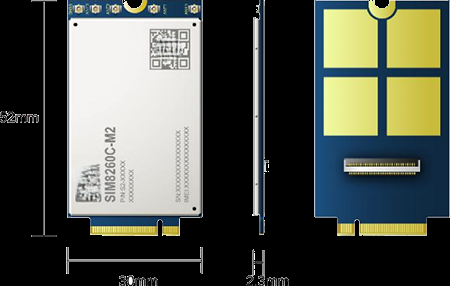

| Dimensions(mm) | 52.0*30.0*2.3 |
| Frequency Bands | 5G SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79 5G NSA: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n75/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B46/B48 WCDMA: B1/B2/B4/B5/B8/B19 GNSS: GPS/GLONASS/Beidou/Galileo/QZSS |
| Temperature | -30°C ~+70°C |
| Extended Temperature Range | -40°C +85°C |
| Data Transfer | SA: 2.5Gbps(DL)/0.9Gbps(UL) NSA: 3.47Gbps(DL)/460Mbps(UL) LTE: 1.6Gbps(DL)/200Mbps(UL) HSPA+: 42Mbps (DL)/5.76Mbps(UL) |
| Supply Voltage(V) | 3.135 ~ 4.4 |
| Protocol | CP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0TLS |
