| Brand Name: | WSD |
| Model Number: | FTQ-2458MQX0808V6AN |
| MOQ: | 1 |
| Price: | $50~300 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 |

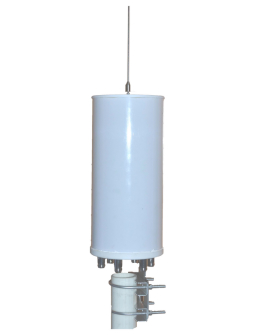

2.4/5.8GHz WLAN/WIFI/ISM/WIMAX,Spread Spectrum Communication
| Electrical Specifications | ||
|---|---|---|
| Freq.Range-MHz | 2400 to 2500 | 5150 to 5850 |
| Bandwidth-MHz | 100 | 700 |
| Polarization | Vertical | Vertical |
| Gain-dBi | 8 | 8 |
| Half-power beam width-° | H:360 E:17 | H:360 E:17 |
| Cross-pol-isolation-dB | ≥25 | |
| Impedance-Ω | 50 | |
| VSWR | ≤ 1.5 | ≤ 2.0 |
| Max.Power-W | 20 | |
| Mechanical Specifications | ||
| Connector | 6*N Female | |
| Connector Quantity | Three 2.4GHz Connector and Three 5.8GHz Connector | |
| Connector Position | Bottom | |
| Dimension-MM | About Φ145*320 | |
| Weight-KG | About 1.2 | |
| Radome material | ABS or PC | |
| Radome color | White | |
| Operational Temperature-℃ | -40 to 60 | |
| Storage Temperature-℃ | -55 to 85 | |
| Relative Humidity-% | 5 to 95 | |
| Rated Wind Velocity-M/S | 60 | |
| Mounting way | Mast | |
| Mast Diameter-MM | Φ40 to 50 | |
