| Brand Name: | WSD |
| Model Number: | FTD-2458MSH1212VH65A |
| MOQ: | 2 |
| Price: | $50~300 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 500 |

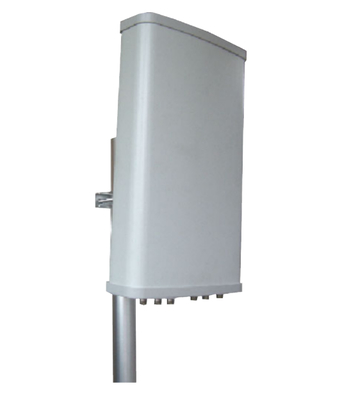

FTD-2458MSH1212VH65A
MIMO sector plate antenna
2.4/5.8GHz WLAN/WIFI/ISM/WIMAX,Spread Spectrum Communication
Electrical Specifications|
Electrical indicators |
FTD-2458MSH1212VH65A-6 |
|
|
frequency range -MHz |
2400～2500 |
5150～5850 |
|
tape width -MHz |
100 |
700 |
|
Polarization mode |
2× vertical + horizontal |
2× vertical + horizontal |
|
gain -dBi |
12 |
12 |
|
Electric downtilt- ° |
0 |
0 |
|
Half power wavelet width-° |
H:65 E:30 |
H:65 E:30 |
|
insulation -dB |
≥23 |
|
|
front-to-back ratio -dB |
≥20 |
|
|
input impedence -Ω |
50 |
|
|
voltage standing-wave ratio |
≤1.5 |
≤2.0 |
|
maximum power -W |
50 |
|
|
Lightning protection |
DC grounding |
|
|
|
||
|
Mechanical and environmental indicators |
||
|
joint categories |
6×N Cervix |
|
|
Joint position |
bottom |
|
|
Antenna size-MM |
About 400 x 280 x 85 |
|
|
Antenna weight-KG |
About 2.5 |
|
|
material for radome |
PVC |
|
|
Color of the antenna dome |
gray |
|
|
Mechanical adjustable inclination- ° |
0～15 |
|
|
working temperature -℃ |
-40～60 |
|
|
Storage temperature-℃ |
-55～85 |
|
|
relative humidity -% |
5～95 |
|
|
Maximum wind speed-M/S |
60 |
|
|
Pole diameter-MM |
35～75 |
|
