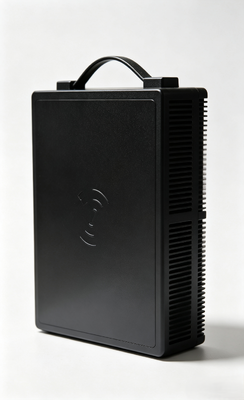

The Active Portable Decoding Device is an advanced integrated solution designed to support comprehensive 4G and 5G mobile communication environments based on the 3GPP protocol framework.
By utilizing software-defined radio (SDR) technology, the system performs in-depth analysis of mobile terminal identification characteristics and provides professional communication environment analysis capabilities for authorized applications.
Designed for specialized operational scenarios including correctional facilities, public safety applications, and professional investigation support environments, the system enables efficient large-scale mobile terminal detection, identification, and inspection operations within designated areas.
With its portable design and intelligent processing capabilities, the device provides users with flexible deployment options and enhanced operational efficiency in complex mobile communication environments.
The system is capable of detecting mobile terminals within the effective coverage area and collecting corresponding IMSI identification information for further analysis and management.
The professional version supports real-time translation between terminal identification information and corresponding mobile phone numbers.
The system can acquire:
This capability provides enhanced terminal identification and analysis functions.
The system supports comprehensive 4G LTE and 5G NR network environments, enabling IMSI collection across different mobile operators.
The system features intelligent automatic configuration capability.
After startup, the device automatically performs network scanning and adjusts operating parameters according to the detected frequency environment, eliminating the need for manual frequency configuration.
The system supports mobile terminal model identification and can recognize various mainstream smartphone brands and models, including:
The system supports flexible target management through blacklist and whitelist configuration.
Functions include:
This provides more efficient target management and operational control.
The DW function enables direct device positioning capabilities.
The system can work independently or integrate with individual positioning solutions to assist in locating designated mobile terminals and improving search efficiency.
|
name |
Active portable decoding equipment |
|
model |
BAFY-01 |
|
Applicable networks |
4/5G network |
|
work pattern |
Active |
|
Working frequency band |
4G-LTE: Support B1, B3, B5/8 (optional), B39, B34, B40, B41/B38. 5G-NR: Supports N1, N28, N41, N78, N79 (optional). |
|
picking rate |
600 per minute |
|
Static collection rate |
>95% (IMSI);>80% (PN static acquisition rate, up to 80% when the mobile terminal is within the signal coverage range and in a static position, excluding the Internet of Things card) |
|
Date of collection |
Static user average duration 6s~9s |
|
antenna |
The antenna is all built in |
|
interface connection |
Built-in WIFI 5.8G, connect to mobile phone (APP) network port RJ45, wired connection |
|
power dissipation |
<140w |
|
cell |
Built-in, continuous operation time>2 hours; easy to pull out and replace. Charging: DC24V/4A |
|
Materials and colours |
Black metal casing, ABS antenna surface |
|
weight |
<6.2kg (with battery) <5.1kg (without battery) |
|
heat radiation |
Built-in mute fan, noise level <32dB |
|
Operation terminal |
cellphone APP |
|
Equipment type |
Single person portable (handbag or backpack) |
|
work environment |
-20℃ to +55℃ full load normal work; humidity: 5%RH~98%RH. |
|
levels of protection |
Support for IP30 |
