| Brand Name: | WSD |
| Model Number: | CA630 |
| MOQ: | 1 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50 |

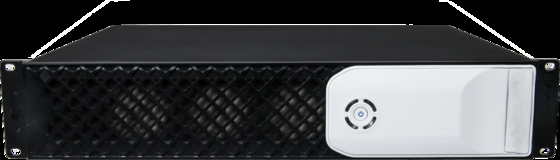

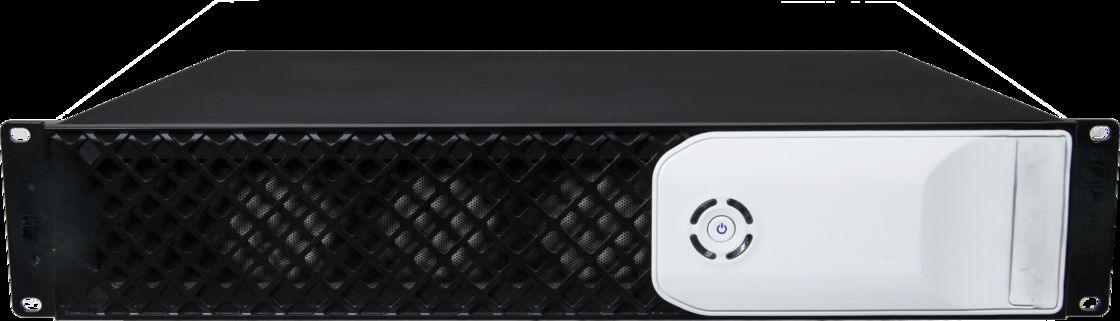

5G Vehicle-Mounted IMSI Catcher
P1.Product Overview
The 5G active vehicle-mounted IMSI Catcher device supports the full range of 5G frequency bands. It enables IMSI information collection and precise Direction Finding and Positioning of 5G mobile phones. The complete system mainly consists of two vehicle-mounted Direction Finding and Positioning hosts, a portable decoder, direction-finding antennas, and an operation handset. For the first time, the product introduces intelligent symbol shutdown technology based on a scheduling algorithm and GaN (Gallium Nitride) technology, significantly reducing overall power consumption through both software and hardware innovations.
2. Key Features
3. Technical Specifications
|
Name |
Parameter |
|
Product Model |
CA640-NR |
|
Operating Frequency Band |
N1,N28,N41,N78(Customization Supported) |
|
Number of Carriers |
6 |
|
Operating Bandwidth |
20-100M |
|
Receiving Sensitivity |
<-102dBm |
|
Network Access Control Distance |
>300 m (at public network signal strength -80 dBm to -90 dBm) |
|
Number of Antennas |
3 |
|
Transmit Power |
20W |
|
Synchronization Method |
GPS |
|
Operating Software |
Android APP |
|
Connection Method |
WIFI |
|

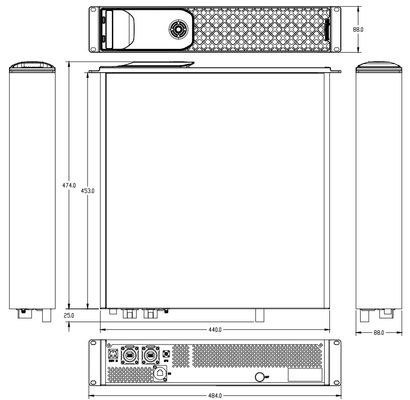

Dimensions |
453*440*88(mm) |
|
Weight |
≤16Kg |
|
Total Power Consumption |
≤140W |
|
Cooling Method |
Active Cooling (Fan-based) |
|
External Interfaces |
ANT * 2, GPS interface * 1, RJ45 * 2, power * 1 |
|
Operating Voltage |
220V AC |
|
Operating Temperature |
-25℃～+55℃ |
|
Operating Humidity |
5%～80% |
