| Brand Name: | WSD |
| Model Number: | BAC200-NL |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Supply Ability: | 50 |

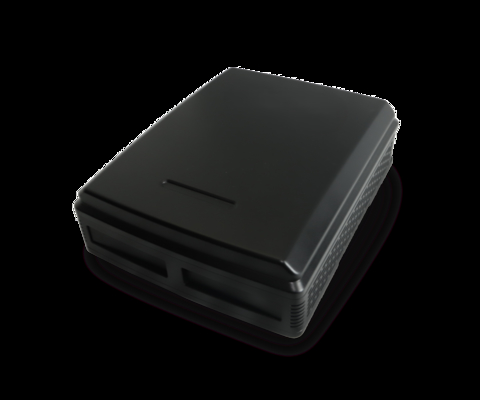

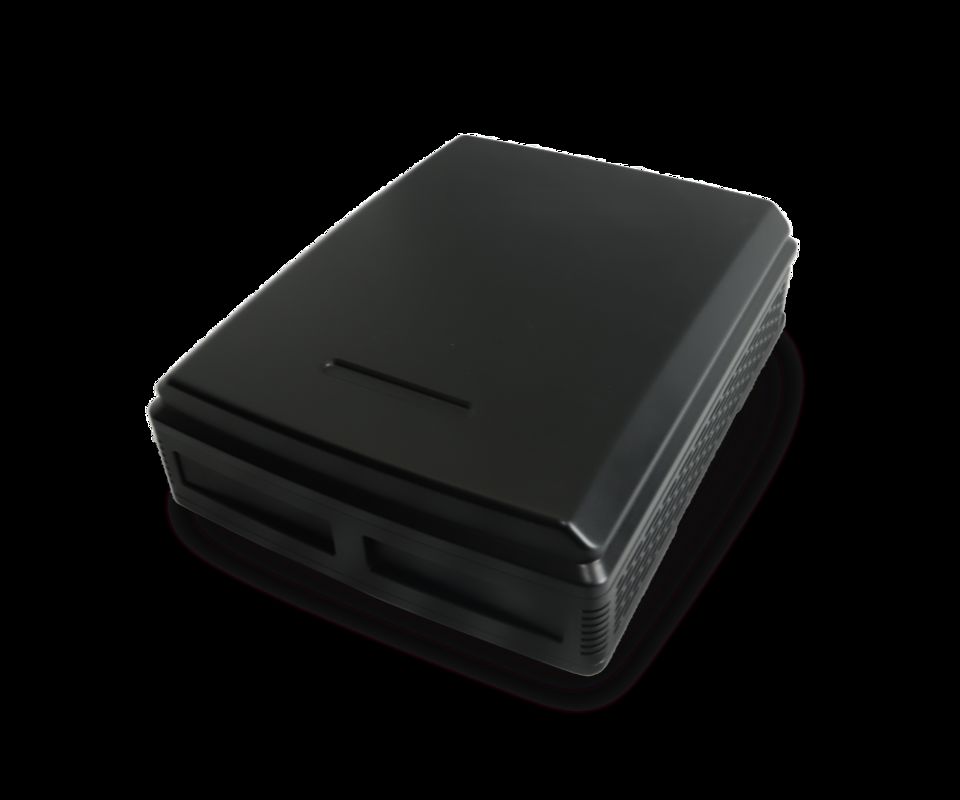

5G Portable IMSI Catcher
5G Portable IMSI Catcher, Portable IMSI Catcher in NR, 5G Portable IMSI Positioning, Tracking 5G IMSI, Locate the position using IMSI, A Portable Device Used IMSI location
1. Product Overview
The 5G Portable IMSI Catcher device supports the full range of 5G frequency bands, Supported Mobile Network Operators. It enables IMSI information collection and precise Direction Finding and Positioning of 4G/5G mobile phones. The device features a four-carrier design with an integrated structure, built-in antennas, and a detachable battery, providing up to 2 hours of operation on a single battery.
2. Key Features
3. Technical Specifications
|
Name |
Parameter |
|
Product Model |
BAC200-NL |
|
Applicable Networks |
5G |
|
Number of Carriers |
4 |
|
Operating Frequency Band |
N1,N28,N41,N78(Customization Supported) |
|
Operating Bandwidth |
20-100M |
|
Receiving Sensitivity |
<-102dBm |
|
Network Access Control Distance |
>200 m (at public network signal strength -80 dBm to -90 dBm) |
|
Transmit Power |
5W |
|
Synchronization Method |
GPS |
|
Operating Software |
Android APP |
|
Connection Method |
WIFI |
|
Dimensions |
336*270*110mm |
|
Weight |
＜6.7KG |
|
Total Power Consumption |
＜110W |
|
External Interfaces |
GPS Interface, Charging Interface, RJ45 Interface, Power Switch |
|
Cooling Method |
Active Cooling (Fan-based) |
|
Battery Life / Operation Time |
≥2h |
|
Operating Voltage |
DC 28V |
|
Number of Batteries |
2 |
|
Battery Specifications |
28.9V/9Ah |
|
Battery Dimensions |
329*116*31.3mm |
|
Operating Temperature |
-25℃～+55℃ |
|
Operating Humidity |
5%～80% |
