| Brand Name: | WSD |
| Model Number: | W500 |
| MOQ: | 2 |
| Price: | Price Negotiable |
| Payment Terms: | ,L/C,T/T |
| Supply Ability: | 150 |

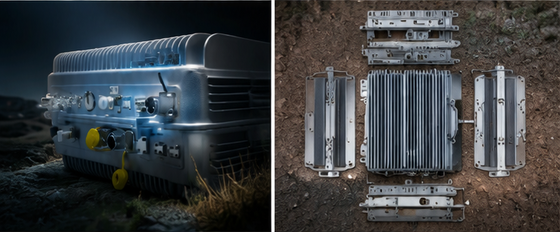

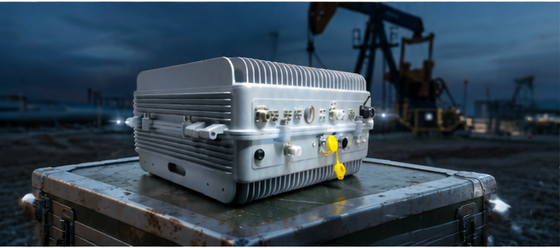

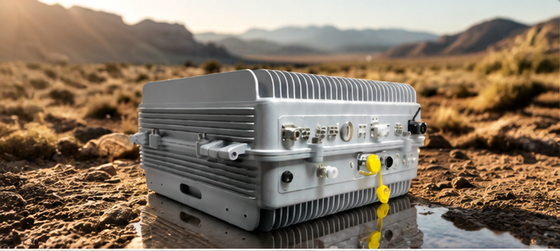

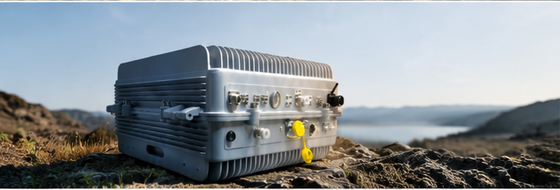

5G Outdoor Macro-Site IMSI Capture Device
This outdoor-type 5G macro-fixed IMSI Catcher features IMSI interception capabilities and a big data (IMSI records) analytics platform.
1. Product Overview
This product is a 5G macro-fixed IMSI Catcher designed to collect IMSI and MAC information from 5G mobile phones across all mobile network operators. The device can be flexibly integrated with 2G, 3G, and 4G modules based on customer requirements, enabling customized combinations of multiple network standards and frequency bands.
The product seamlessly integrates with existing hotspot platforms, delivering unified site management and standardized data output formats, and supporting comprehensive analysis of 2G/3G/4G/5G and MAC data.
2. Key Features
Full 5G network coverage with support for all mobile network operators
Supports both same-frequency and different-frequency 5G operation
Enables real-time adjustment of power output and operating frequency bands without system restart
Device alarms are automatically reported to the backend, with support for remote maintenance, remote firmware upgrades, and remote alarm handling
Supports power-off alarm functionality
Supports MAC information collection
3. Technical Specifications
| Name | Parameter |
| Product Model | BAC200-NL |
| Applicable Networks | 5G |
| Number of Carriers | 4 |
| Operating Frequency Band | N1,N28,N41,N78(Customization Supported) |
| Operating Bandwidth | 20-100M |
| Receiving Sensitivity | <-102dBm |
| Coverage Area | >300 m (at public network signal strength -80 dBm to -90 dBm) |
| Receiving Sensitivity | <-102dBm |
| Transmit Power | 0–10 W, adjustable in multiple levels |
| Synchronization Method | GPS |
| Operating Bandwidth | 20-100M |
| Resume Transmission After Network Loss | Supported |
| Storage Capacity | Approximately 180 days |
| Data Backhaul Method | 3G, 4G, Wi-Fi, Wired transmission |
| Power-off Alarm | Supported |
| MAC Collection | 2.4 GHz / 5.8 GHz |
| External Interfaces | 2.4/5.8 GHz Wi-Fi ports ×2, WAN port, LAN port, GPS port, VENT port, ANT ports ×2, 3G/4G backhaul interface, Sniffer interfaces ×2, SIM card slot |
| Antenna Type | External flat-panel directional antenna |
| Number of Antennas | 2 |
| Protection Level (Ingress Protection / IP Rating) | IP66 |
| Dimensions | 513*461.2*232.5mm |
| Weight | ≤32kg |
| Power Consumption | ≤260W |
| Operating Voltage | AC 220V(100V～300V,50Hz) |
| Cooling Method | Passive Cooling |
| Operating Temperature Range | -40°~55° |
| Operating Humidity | 0%～95% |
| Mean Time Between Failures (MTBF) | MTBF＞10000h |
