| Brand Name: | WSD |
| Model Number: | BAC200-NL |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Supply Ability: | 50 |

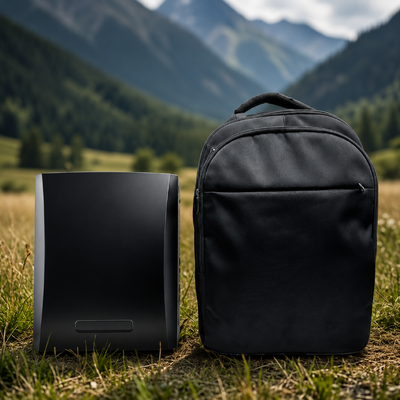

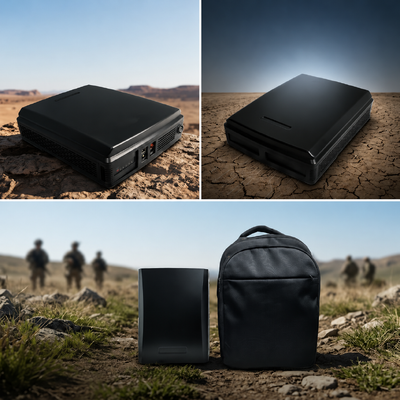

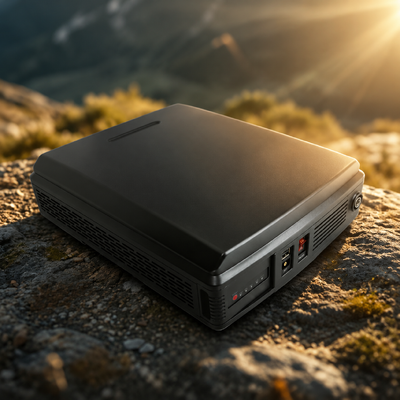

5G Portable IMSI Identification and Tracker
5G Portable IMSI Identification and Tracker, designed specifically for NR networks, achieves location locking via IMSI signals, and is a lightweight IMSI positioning device.
1. Product Overview
The 5G Portable IMSI Catcher offers full-band 5G coverage and compatibility with all major carrier networks, supporting IMSI data collection and high-precision direction finding and positioning for 5G mobile phones. With a four-carrier integrated design, built-in antennas, and a swappable battery, the device provides up to 2 hours of runtime per charge.
2. Key Features
Dual Sync Modes: Supports GPS synchronization and public network synchronization (sniffer mode), with public network sync completing in just 2 seconds
Intelligent One-Click Operation: Automatically scans networks and configures parameters – enter the IMSI and initiate one-click Direction Finding and Positioning with no complex setup
Extended Control Range: Network access control range exceeding 300 meters
Long Battery Life: Equipped with two detachable batteries, each providing up to 2 hours of operation
Proprietary Directional Antennas: Multi-element design delivers concentrated energy and broader coverage
Quiet Cooling: Imported ultra-quiet fan with APP-based intelligent control
Comprehensive Data Recording: Supports black box functionality, historical data query, and collision analysis
3. Technical Specifications
|
Name |
Parameter |
|
Product Model |
BAC200-NL |
|
Applicable Networks |
5G |
|
Number of Carriers |
4 |
|
Operating Frequency Band |
N1,N28,N41,N78(Customization Supported) |
|
Operating Bandwidth |
20-300M |
|
Receiving Sensitivity |
<-102dBm |
|
Network Access Control Distance |
>200 m (at public network signal strength -80 dBm to -90 dBm) |
|
Transmit Power |
5W |
|
Synchronization Method |
GPS |
|
Operating Software |
Android APP |
|
Connection Method |
WIFI |
|
Dimensions |
336*270*110mm |
|
Weight |
＜6.7KG |
|
Total Power Consumption |
＜110W |
|
External Interfaces |
GPS Interface, Charging Interface, RJ45 Interface, Power Switch |
|
Cooling Method |
Active Cooling (Fan-based) |
|
Battery Life / Operation Time |
≥2h |
|
Operating Voltage |
DC 28V |
|
Number of Batteries |
2 |
|
Battery Specifications |
28.9V/9Ah |
|
Battery Dimensions |
329*116*31.3mm |
|
Operating Temperature |
-25℃～+55℃ |
|
Operating Humidity |
5%～80% |
