| Brand Name: | WSD |
| Model Number: | C04 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 100 |

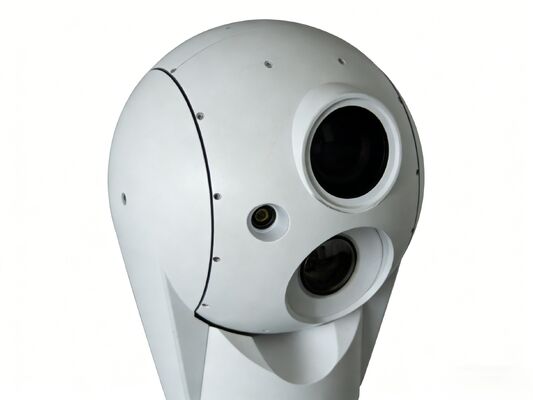

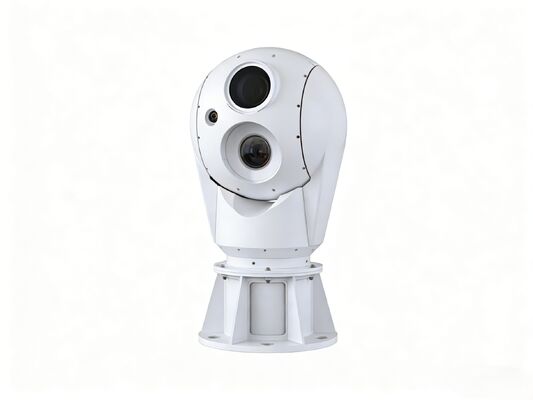

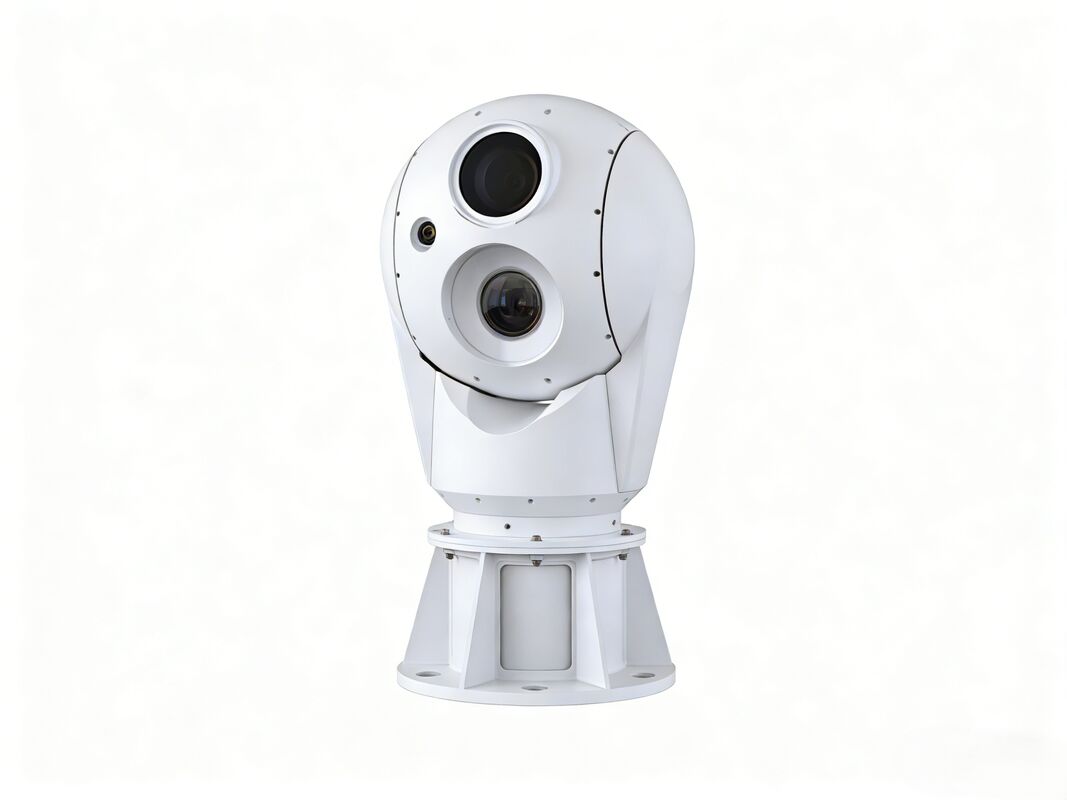

Electro-Optic UAS Defense System
Compact Electro-Optic Tracking System for Small UAV Detection
The electro-optic identification and tracking camera features a miniaturized, covert structure design engineered to perform precision positioning, real-time tracking, and accurate identification of small unmanned aerial vehicle (UAV) targets.
FEATURES
Payload Capacity
Integrates a visible light camera, large-aperture thermal imager, servo-controlled laser illuminator, with optional laser rangefinder and digital compass for comprehensive situational awareness.
Precision Control
Employs high-precision angle encoders and a closed-loop servo control system, coupled with a high-performance image processing unit and precision focusing mechanism for accurate target acquisition.
Environmental Durability
Constructed from ultra-strength aluminum alloy with dual-layer internal protection and external triple-proof coating. Certified to IP66 for superior resistance to dust and water ingress.
Advanced Tracking Performance
Features an automatic tracking module powered by multi-target acquisition and tracking algorithms, ensuring reliable performance even in complex scenarios.
SPECIFICATIONS
|
Effective Range |
Visible light: tracking distance<4000m; identification distance < 3000m; Thermal: tracking distance < 2000m, identification distance < 800m |
|
Thermal Lens |
Fifth generation VOx oxide uncooled detector, resolution 640x512, 22-230mm |
|
Visible Lens |
2M pixel high-definition module, 12.5-860mm zoom lens |
|
Intelligent Analysis |
Intrusion detection, auto tracking, UAV identification |
|
Gimbal |
0.01° high-precision positioning, azimuth rotation range 0°~360° , pitch rotation range -90°~+90° , rotation speed 80°/s, minimum speed 0.01°/s |
|
Protocol |
Support Onvif/ RTSP/28181 |
