| Brand Name: | WSD |
| Model Number: | C04 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 100 |

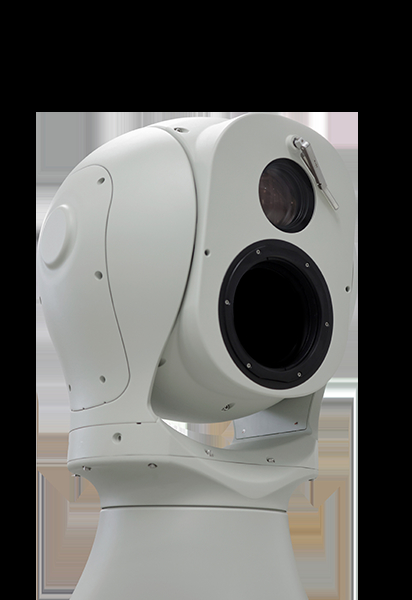

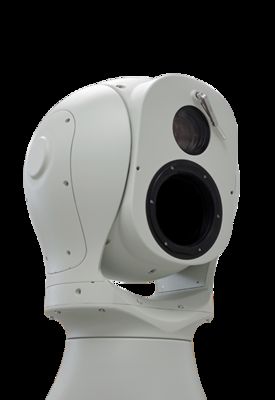

PHOTOElECTRIC Used Counter UAS
The photoelectric identification and tracking camera adopts a miniaturized concealed structure design to achieve positioning, tracking and identification of small UAV targets.
FEATURES
Strong Load Capacity: Equipped with visible light camera, large-aperture thermal imagers, follow-up laser illuminators, optional laser distance measuring device, digital compass, etc..
Accurate Control: Utilizes high-precision angle encoder and closed-loop servo control system; High-performance image processing unit and high-precision focusing control mechanism.
Strong Environmental Adaptability: Ultra-strength aluminum alloy material; Double-layer inside and triple-proof outside, IP66 protection rate.
Excellent Tracking Performance: Automatic tracking module designed with multiple target acquisition and tracking algorithms.
SPECIFICATIONS
|
Effective Range |
Visible light: tracking distance<4000m; identification distance < 3000m; Thermal: tracking distance < 2000m, identification distance < 800m |
|
Thermal Lens |
Fifth generation VOx oxide uncooled detector, resolution 640x512, 22-230mm |
|
Visible Lens |
2M pixel high-definition module, 12.5-860mm zoom lens |
|
Intelligent Analysis |
Intrusion detection, auto tracking, UAV identification |
|
Gimbal |
0.01° high-precision positioning, azimuth rotation range 0°~360° , pitch rotation range -90°~+90° , rotation speed 80°/s, minimum speed 0.01°/s |
|
Protocol |
Support Onvif/ RTSP/28181 |
