| Brand Name: | WSD |
| Model Number: | R10 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

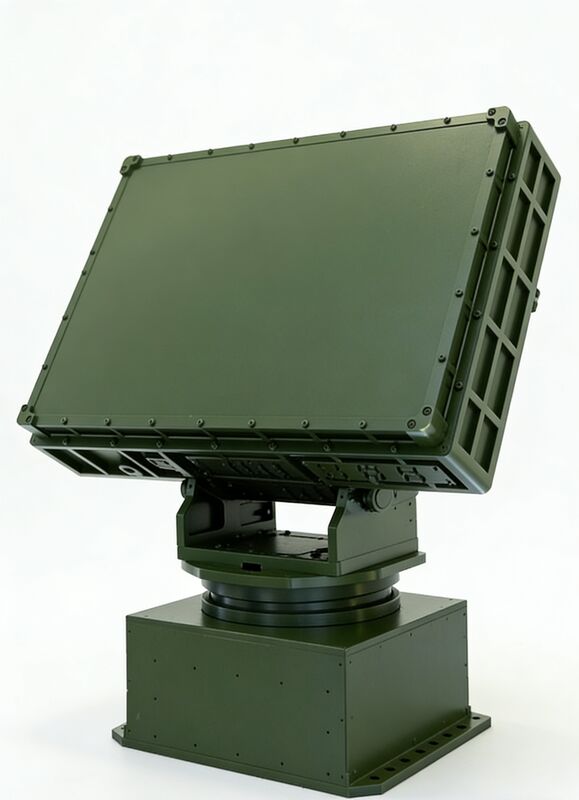

Radar-Based Counter-UAS System
Low-Altitude Detection Radar – Comprehensive Situational Awareness
The low-altitude detection radar provides real-time acquisition of critical target parameters including spatial position, movement status, radar cross-section (RCS), and target classification. It is capable of detecting and tracking a wide range of aerial threats such as multi-rotor drones, fixed-wing unmanned aerial vehicles, FPV drones, cruise missiles, and drone swarms.
Key Features
Active Phased Array Technology
Adopts a solid-state active transceiver architecture combined with advanced digital signal processing for superior detection performance.
All-Weather, 24/7 Operation
Engineered for reliable performance in all weather conditions and at any time of day, ensuring continuous situational awareness.
Accurate Target Identification
Leverages motion-characteristic-based detection technology to enable precise target classification and effective early warning.
Multi-Target Tracking Capability
Capable of simultaneously detecting and tracking multiple targets, providing comprehensive surveillance of complex airspace environments.
SPECIFICATIONS
|
Working Frequency |
X/Ku |
|
Detection Radius |
≤ 10km (RCS=0.0l㎡) |
|
Blind Range |
≤ 200m |
|
Coverage |
Horizontal 0~360°,Vertical 0~30°/0~60° |
|
Speed Detection Range |
1m/s~200m/s |
|
Distance Measurement Accuracy |
≤ 10m |
|
Azimuth Measurement Accuracy |
≤ 0.5° |
|
Pitch Measurement Accuracy |
≤ 0.5° |
|
Data Rate |
3s/6s |
|
Number of Targets Detected Simultaneously |
≤ 200 |
