IMSI Catcher Device
Created with Pixso.

A 7-channel portable IMSI catcher supporting 2G, 3G, and 4G networks for simultaneous location tracking of multiple devices.

A 7-channel portable IMSI catcher supporting 2G, 3G, and 4G networks for simultaneous location tracking of multiple devices.

Brand Name: WSD
Model Number: B201
MOQ: 1
Price: Price negotiable
Payment Terms: L/C,T/T
Supply Ability: 50
Detail Information
Band:
GSM:900M/1800M WCDMA: 2100M LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41/ (customization Supported)
Receiver Sensitivity:
-98dBm
Control Distance:
300m (depending On Wireless Environment)
Transmit Power:
5W Per Channel
Channel:
7 Channels
Bandwidth:
5MHz
Highlight:

7-channel portable IMSI catcher

,

IMSI catcher for 2G 3G 4G

,

multi-device location tracking IMSI catcher

Product Description

A 7-channel portable IMSI catcher supporting 2G, 3G, and 4G networks for simultaneous location tracking of multiple devices.





A 7-channel portable IMSI catcher supporting 2G, 3G, and 4G networks for simultaneous location tracking of multiple devices. 0





I. Device Introduction

The device adopts core technologies of GSM, WCDMA, and LTE base stations. It is capable of implementing communication control over mobile terminals within its signal coverage, capturing the IMSI/IMEI of mobile terminals, and accurately locating target terminals.

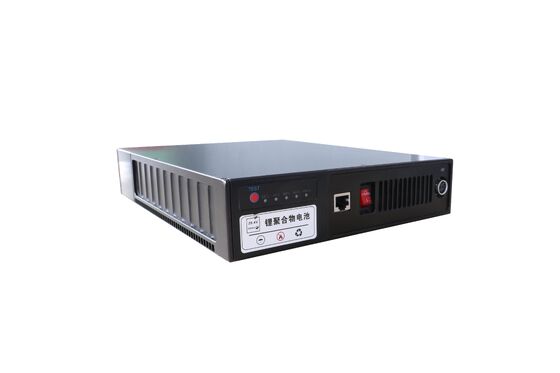

The portable IMSI Catcher features an integrated design with a built-in antenna and a removable battery. It requires no complex wiring, offering excellent concealment and portability.

It is controlled via a mobile app, featuring simple operation. Once the device successfully captures the target, the app interface will continuously and stably display values. The exact location of the target terminal can be precisely identified based on the magnitude of these values.





II. Application Scenarios

A 7-channel portable IMSI catcher supporting 2G, 3G, and 4G networks for simultaneous location tracking of multiple devices. 1




III. Configuration List

No.

Name

Specification Parameters

Quantity

Remarks

1

2G/3G/4G Portable IMSI Catcher

Band:

GSM:900M/1800M

WCDMA: 2100M

LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41/

(customization supported)

Bandwidth: 5MHz

Synchronization Methods: GPS and public network synchronization (sniffer)

Receiver Sensitivity: -98dBm

Control Distance: 300m (depending on wireless environment)

Transmit Power: 5W per channel

Channel: 7 Channels

Power Consumption: 110W

Dimensions: 330*280*120mm

Weight: 7Kg

Battery Parameters: 28.9V/9Ah

Operating Voltage: DC 28V

1 unit



2

operating terminal

Redmi Note 9 (or other Android phones)

1 unit



3

other accessories

GPS antenna

backpack for portable devices

device charger

1 set
