A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification

Brand Name:	WSD
Model Number:	CA-620
MOQ:	1
Price:	Price Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	100

Detail Information

Product Description

Detail Information

Document:

A vehicular IMSI intercepto...on.pdf

Direction-Finding Antenna:

4-direction Capability Roof Box Integration Compatible

Bands:

GSM:900M/1800M, WCDMA:2100M, LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 (customizable)

Sensitivity:

< -102 DBm

Bandwidth:

5 MHz

Synchronization:

GPS And Public Network

Range:

0-1000m

Highlight:

vehicular IMSI interceptor for mobile tracking

2G 3G 4G network IMSI catcher

mobile phone location identification device

Product Description

A multi-band (2G/3G/4G) mobile IMSI interception and tracking system deployed in vehicles

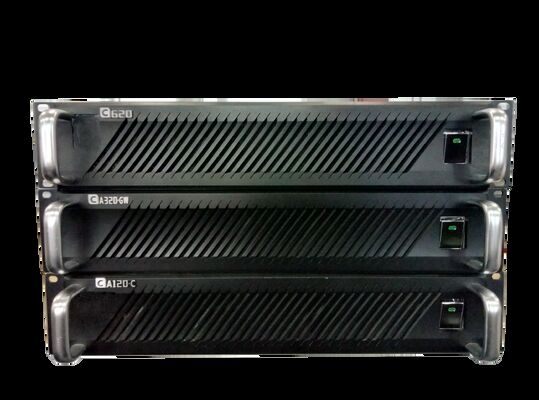

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification 0

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification 1

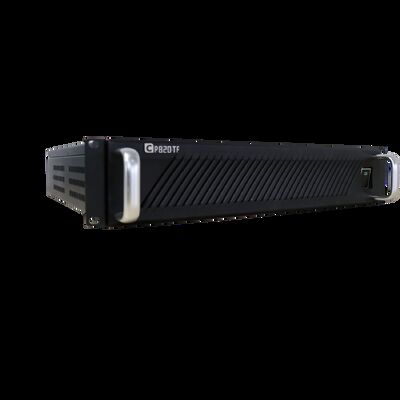

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification 2

A vehicular IMSI interceptor supporting 2G/3G/4G networks for mobile phone tracking and location identification 3

Advanced Mobile Terminal Tracking Solution

This vehicle-mounted IMSI catcher system utilizes core GSM, WCDMA, and LTE base station technologies to implement communication control over mobile terminals within its coverage area. The system captures IMSI/IMEI data and provides accurate terminal location capabilities.

System Components & Operation

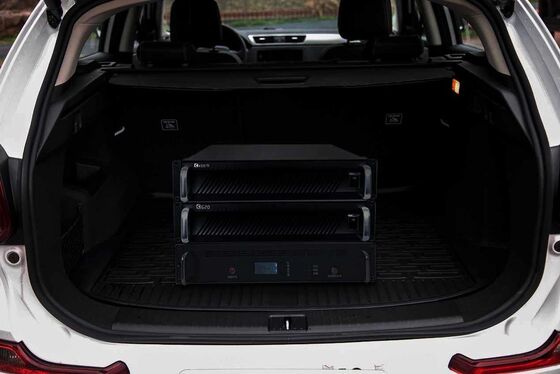

The complete system includes a main unit, antenna array, battery pack, and hand-held signal strength indicator. The main components are installed in an SUV (main unit and battery in the trunk, antennas on the roof) and controlled via a mobile application for intuitive operation.

When the system successfully captures a target, the app provides continuous, stable readings and precise directional information. Operators can use the hand-held signal strength indicator to refine detection and pinpoint the exact location of target terminals.

System Configuration

No.	Component	Specifications	Quantity	Remarks
1	Main Unit	Bands: GSM:900M/1800M, WCDMA:2100M, LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 (customizable) Bandwidth: 5 MHz Synchronization: GPS and public network Sensitivity: < -102 dBm Range: 0-1000m Power: 20W/channel (10 channels) Dimensions: 48447488mm Weight: 16kg	2 units
2	Signal Strength Indicator	Bands: GSM/WCDMA/LTE (customizable) Power: 2.5W Dimensions: 18610621mm Weight: 0.5kg (with accessories)	1 unit
3	Shark Fin Antenna	Frequency: 700MHz-2700MHz Gain: 1.0-4.0 dBi VSWR: ≤2.0 Dimensions: 200120110mm Weight: 0.3kg	3 units
4	Direction-Finding Antenna	4-direction capability Roof box integration compatible	1 unit	Optional
5	Battery Pack	Type: Lithium iron phosphate Capacity: 52Ah Input: 10.4V-16V DC/320W Output: 220V±10%/50Hz/3000VA Dimensions: 500440134mm Weight: 28kg	1 unit
6	Operation Terminal	Windows laptop or tablet	1 unit	Included
7	Accessories	Industrial router, Ethernet cable, power cables, GPS antenna, power strip	1 set
