Trolley-style Mobile Phone Signal Jammer

Detail Information

Document:

Applicable Networks:

4G,5G Network

Antenna Gain:

3dBi

Operating Bandwidth:

5～100MHz

Monitoring:

Real-time

Transmission Power:

10W Per Carrier

Receiver Sensitivity:

<-102dBm

Highlight:

Product Description

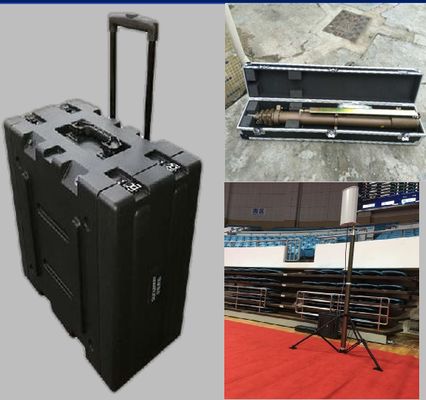

Trolley-style Mobile Phone Signal Jammer

Trolley-style Mobile Phone Signal Jammer 0

Product Specification Manual

I. Product Features

Comprehensive Standard Coverage
Supports 2G, 3G, 4G, and 5G communication standards (desktop version also includes WiFi 2.4G/5.2G/5.8G).
Signaling-Level Downlink Interference Technology
The device adopts innovative signaling-level interference technology. By decoding downlink interference and fully synchronizing uplink and downlink time slots, it causes no interference to uplink channels and does not affect operator base stations.
Accurate Coverage Without Blind Spots
Based on a fully digital architecture, the device adapts to changes in the wireless network environment, ensuring precise shielding coverage.
Green and Radiation-Free
Using signaling shielding technology, it achieves high shielding efficiency with ultra-low transmission power, compliant with GB8702-201 standards.
Network Management Function
The device has an Ethernet port and can be connected to a wired network. Administrators can manage the device through network management software.

II. Technical Specifications

Parameter	Specification
Frequency Range (MHz)	824-960 / 1710-2700
Voltage Standing Wave Ratio (VSWR)	≤1.5
Input Impedance (Ω)	50
Gain (dBi)	13 ± 0.5
Polarization	Vertical
Horizontal Beamwidth (°)	65 ± 5
Vertical Beamwidth (°)	32 ± 2 / 15 ± 2
Front-to-Back Ratio (dB)	>15
Maximum Power (W)	50
Connector Type	N-Female
Lightning Protection	DC Grounding
Dimensions (mm)	597 × 330 × 134
Weight (kg)	5.6
Number of Sections	4
Inner Diameter of Last Aluminum Tube	Φ34mm
Inner Diameter of Outer Aluminum Tube	Φ80mm
Retracted Height	1.65 m
Extended Height	4.2 m
No-Load Working Pressure	0.06 Mpa
Maximum Working Pressure	0.3 Mpa
Wind Resistance	≤25 km/h
Maximum Top Load	≤20 kg
Installation Method	Vertical Installation
Protection Grade	IP64
Surface Treatment	Hard Anodizing (inside and outside)
Net Weight	20 kg
