| Brand Name: | WSD |
| Model Number: | FCA820-NLWG |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50 |

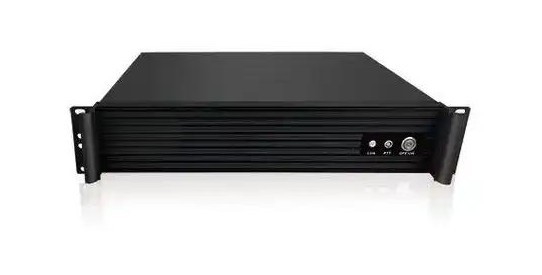

The 2/3/4/5G Vehicle-mounted Communication Control Device supports full frequency bands and multiple mobile network operators. It enables IMSI information collection, communication control, and precise Direction Finding and Positioning (DW) for 2G/3G/4G/5G mobile devices. The complete system consists of a vehicle-mounted host unit, portable decoder, and operation handset.
| Name | Parameter |
|---|---|
| Product Model | FCA820-NLWG |
| Applicable Networks | GSM,WCDMA,LTE-FDD,LTE-TDD,5G NSA,5G-SA |
| Operating Frequency Bands | GSM:900M/1800M WCDMA: 2100M LTE:B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41 NR:N1/N28/N41/N78/N79 |
| Concurrent Carriers | GSM:4 carriers WCDMA:2 carriers LTE:16 carriers NR:4 carriers |
| Number of Onboard Hosts | GSM&WCDMA:1 * 2U Chassis LTE:2 * 2U Chassis NR:1 * 2U Chassis |
| Operating Bandwidth | 5～100MHz |
| Receiver Sensitivity | <-102dBm |
| Access Control Range | >200 m (at public network signal strength -80 dBm to -90 dBm) |
| Transmission Power | 10W per carrier |
| Synchronization Methods | GPS |

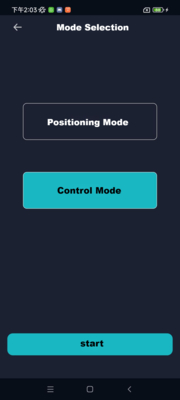

| Operating Software | Android APP |
| Connection Method | WIFI |
| Dimensions (per chassis) | 484*474*88mm |
| Weight (per chassis) | ≤16kg |
| Power Consumption (per unit) | ≤400W |
| Interfaces (per unit) | ANT * 2, GPS interface * 1, RJ45 * 2, power * 1 |
| Cooling Method | Active Cooling (Fan-based) |
| Operating Voltage | 220V AC |
| Operating Temperature | -25℃～+55℃ |
| Operating Humidity | 5%～80% |
