| Brand Name: | WSD |
| Model Number: | BAC200-NLWG |
| MOQ: | 1 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50 |
2/3/4/5G Portable Communication Control Device, Mobile Device Management,Cell Phone Management In The Event Of Illegal Assemblies
1. Product Overview

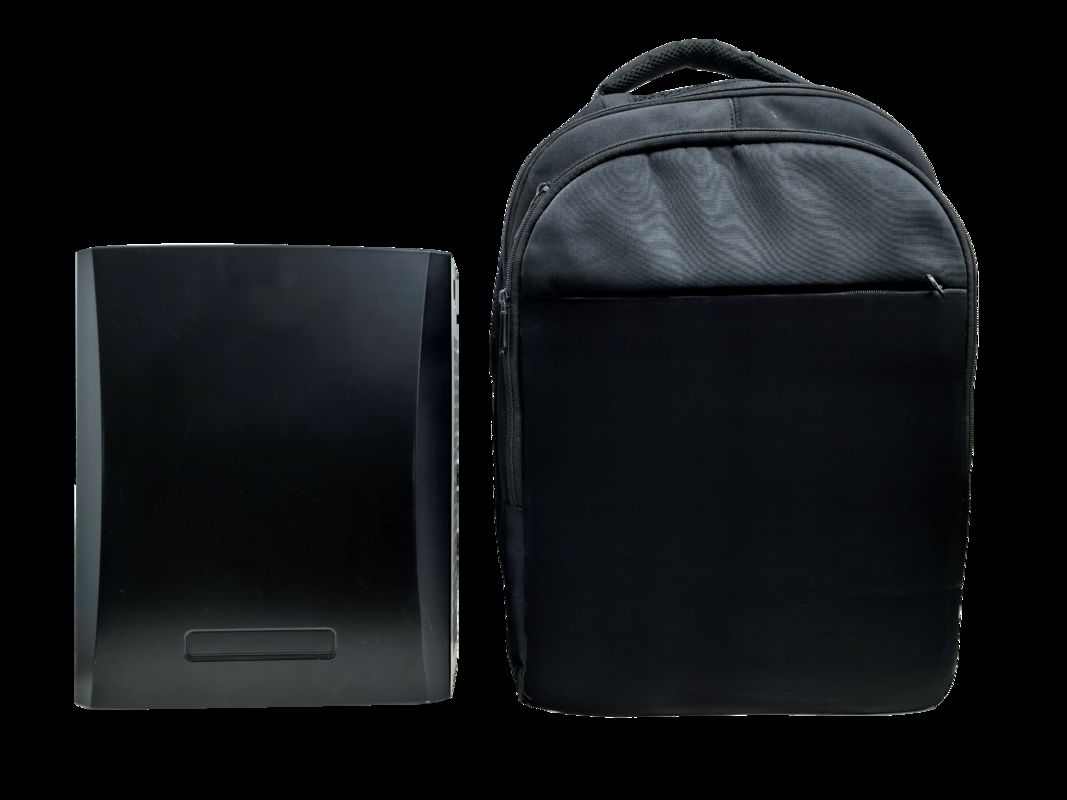

The 2G/3G/4G/5G Portable Communication Control Device supports the full frequency bands, Supported Mobile Network Operators. It enables IMSI collection, communication control, and precise positioning of mobile phones. The complete system consists of a portable host unit, a backpack unit, and an operation terminal (mobile phone or laptop), featuring lightweight design, high flexibility, and rapid deployment.
2. Key Features
l Supports mobile terminals with GSM, WCDMA, LTE-TDD, LTE-FDD, 5G-NSA, and 5G-SA standards.
l Supports location tracking and control of mobile terminals across various brands and chipsets.
l Supports customizable network frequency bands to adapt to local operators in different countries.
l Supports GPS synchronization and public network synchronization (sniffer mode).
l Supports two working modes: communication control and target positioning.
l Supports whitelist and blacklist management (whitelist allows, blacklist restricts).
l Supports automatic scanning of surrounding public network information and auto-parameter configuration, enabling one-click operation without manual setup.
l Built-in directional antenna with long control range and positioning accuracy within 1 meter.

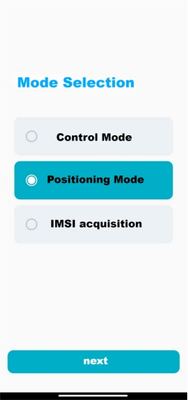

l Controlled via mobile APP, easy to operate.
l APP supports local data storage, query, and analysis functions.
l Each host unit is equipped with two swappable batteries.
3. Technical Specifications
|
Name |
Parameter |
|
Product Model |
BAC200-NLWG |
|
Applicable Networks |
GSM,WCDMA,LTE-FDD,LTE-TDD,5G NSA,5G-SA |
|
Operating Frequency Bands |
GSM:900M/1800M (Customization Supported) |
|
Concurrent Carriers |
GSM:4 carriers |
|
Operating Bandwidth |
5～100MHz |
|
Receiver Sensitivity |
<-102dBm |
|
Access Control Range |
>100 m (at public network signal strength -80 dBm to -90 dBm) |
|
Transmission Power |
0.5W per carrier |
|
Synchronization Methods |
GPS,sniffer |
|
Operating Software |
Android APP |
|
Connection Method |
WIFI |
|
Interfaces (per unit) |
GPS interface , RJ45 , power |
|
Cooling Method |
Active Cooling (Fan-based) |
|
Operating Voltage |
DC 28V |
|
Operating Temperature |
-25℃～+55℃ |
|
Operating Humidity |
5%～95% |
