| Brand Name: | WSD |
| Model Number: | GK-01 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50 |

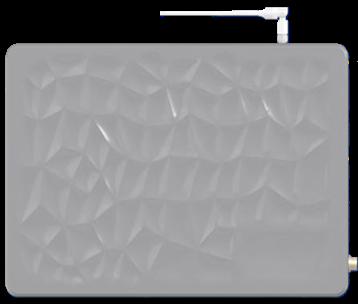

Portable Mobile Phone Shielding Device
This device is a professional shielding system designed to block 2G/3G/4G/5G mobile signals and Wi-Fi within a defined area. It integrates advanced directional antennas and supports both local and remote monitoring for flexible deployment.
Shielding Modes:
Supports multi-band shielding for 2G / 3G / 4G / 5G / Wi-Fi signals.
Shielding Range:
Effective coverage of 150–200 meters @ -75 dBm (depending on environment).
Transmission Method:
Built-in directional antenna for effective signal suppression.
Monitoring Method:
Equipped with RJ45 interface, supporting both local and remote monitoring.
Dimensions:
410 mm (L) × 265 mm (W) × 80 mm (H)
Weight:
7.5 kg
Cooling:
Built-in cooling fan ensures stable operation.
Mounting:
Comes with a rear mounting bracket for easy installation.
Indicators:
Status indicator light for device operation status.
Power Supply Method:
AC-DC switching power supply
Input Voltage:
90–264 V AC
Output Voltage:
24 V DC
Power Consumption:
≤ 170 W
Synchronous Antenna
Integrated Panel (Built-in Radiation Antenna)
Power Port
RJ45 Network Port (Monitoring & Management)
This shielding system is suitable for environments where mobile and Wi-Fi signals need to be blocked for security or management purposes, such as:
Conference rooms
Examination halls
Prisons
Sensitive facilities
Military and government sites
