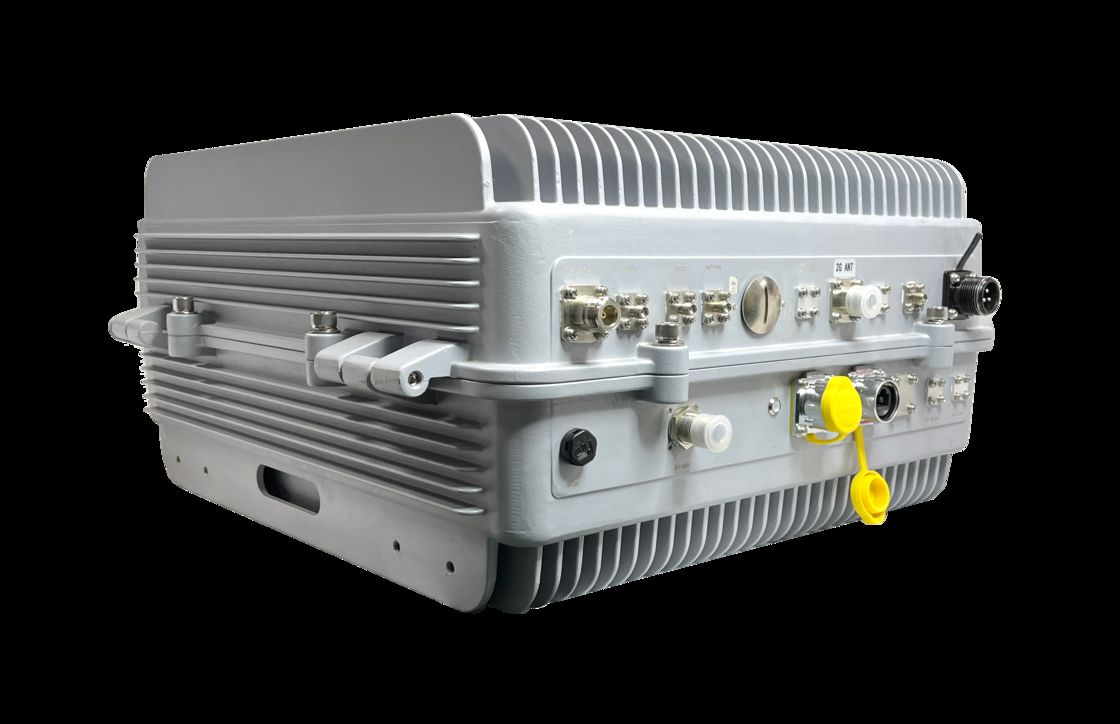

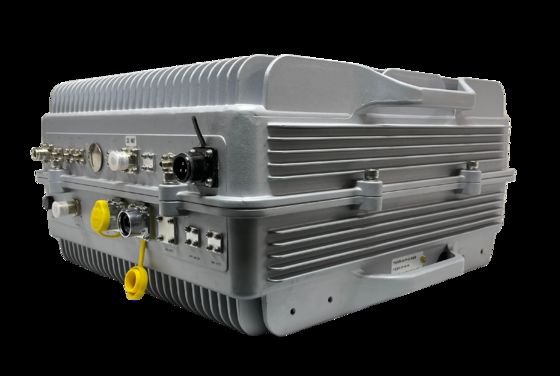

5G Macro-Fixed IMSI Catcher
5G Macro-Fixed IMSI Catcher, 5G IMSI Catcher, IMSI interception, Big Data(IMSI records) Analytics Platform, Outdoor type IMSI Catcher,IMSI Catcher Used Protect the security of oil and gas facilities,
1. Product Overview
The 5G Macro-Fixed IMSI Catcher device supports IMSI and MAC information collection for 5G mobile phones from Mobile Network Operator. It can be integrated with 2G, 3G, and 4G modules according to customer requirements, allowing flexible combinations of multiple network standards and frequency bands.
This product achieves seamless integration with existing hotspot platforms, providing unified site management and standardized data formats, enabling comprehensive analysis of 2G/3G/4G/5G and MAC data.
2. Key Features
l Supported All Mobile Network Operators: Full coverage of 5G networks.
l Supports 5G same-frequency and different-frequency operation.
l Real-time adjustment of power and frequency bands without restarting the device.
l Device alarms are automatically reported to the backend, supporting remote maintenance, remote firmware upgrades, and remote alarm handling.
l Supports power-off alarm functionality.
l Supports MAC information collection.
3. Technical Specifications
|
Name |
Parameter |
|
Product Model |
BAC200-NL |
|
Applicable Networks |
5G |
|
Number of Carriers |
4 |
|
Operating Frequency Band |
N1,N28,N41,N78(Customization Supported) |
|
Operating Bandwidth |
20-100M |
|
Receiving Sensitivity |
<-102dBm |
|
Coverage Area |
>300 m (at public network signal strength -80 dBm to -90 dBm) |
|
Receiving Sensitivity |
<-102dBm |
|
Transmit Power |
0–10 W, adjustable in multiple levels |
|
Synchronization Method |
GPS |
|
Operating Bandwidth |
20-100M |
|
Resume Transmission After Network Loss |
Supported |
|
Storage Capacity |
Approximately 180 days |
|
Data Backhaul Method |
3G, 4G, Wi-Fi, Wired transmission |
|
Power-off Alarm |
Supported |
|
MAC Collection |
2.4 GHz / 5.8 GHz |
|
External Interfaces |
2.4/5.8 GHz Wi-Fi ports ×2, WAN port, LAN port, GPS port, VENT port, ANT ports ×2, 3G/4G backhaul interface, Sniffer interfaces ×2, SIM card slot |
|
Antenna Type |
External flat-panel directional antenna |
|
Number of Antennas |
2 |
|
Protection Level (Ingress Protection / IP Rating) |
IP66 |
|

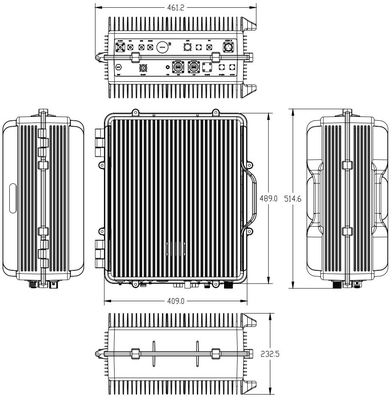

Dimensions |
513*461.2*232.5mm |
|
Weight |
≤32kg |
|
Power Consumption |
≤260W |
|
Operating Voltage |
AC 220V(100V～300V,50Hz) |
|
Cooling Method |
Passive Cooling |
|
Operating Temperature Range |
-40°~55° |
|
Operating Humidity |
0%～95% |
|
Mean Time Between Failures (MTBF) |
MTBF＞10000h |
