| Brand Name: | WSD |
| Model Number: | JY-001 |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
Confidentiality Elf Conference control censorship 4/5G,Prevent mobile phone leaks during confidential meetings

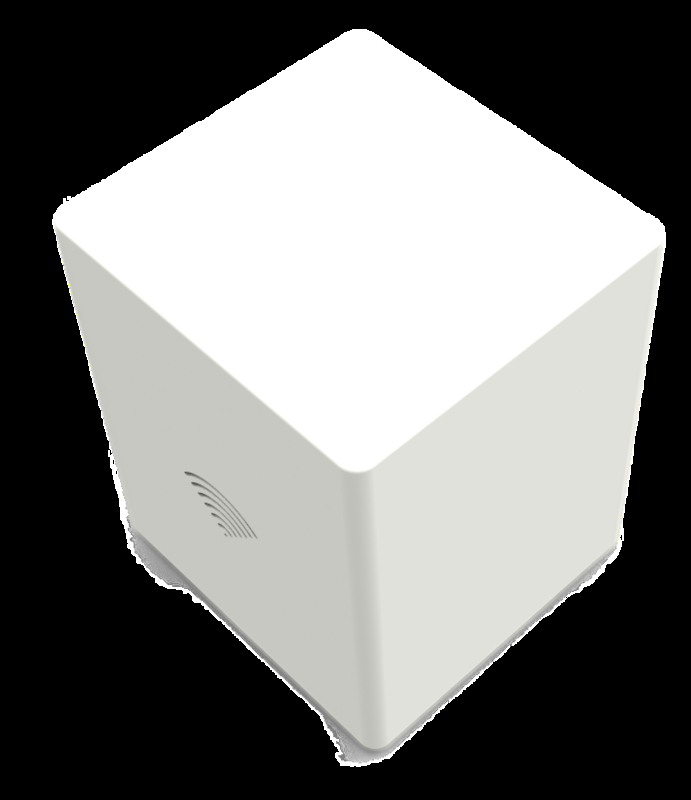

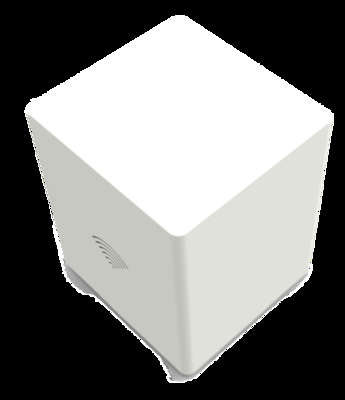

The Confidential Agent BM758 enables collection of mobile device IMSI information under 4G and 5G networks. By simulating operator communication base stations, it triggers network registration processes to obtain IMSI data from mobile devices. Featuring a low-power design, the system employs RF algorithm-controlled simulation base station coverage to securely monitor conference rooms. The device integrates with network management platforms for unified alarm display and equipment management, while supporting export functionality for alert information.
| class | 5G parameter | 4G parameter |
|---|---|---|
| name | Confidential Elves | |
| model | BM758 | |
| Applicable networks | 4G,5G network | |
| Working frequency band | N1/N28/N41/N78 | B1/B3/B5/B8/B34/B39/B40/B41 |
| Carrier number | Multi-carrier concurrency/routing | |
| Method of collection | 5G direct capture | 4G direct capture |
| coverage area | > 5m (public network signal strength below-85dBm) | > 5m (public network signal strength below-85dBm) |
| Work bandwidth | 20MHz | 5MHz |
| Radio frequency bands | 700-3700MHz | |
| antenna gain | 3dBi | |
| Target capture rate | >95% (public network environment below-85dbm) | |
| Back to network time | The mobile phone enters the coverage area to capture and release the cycle is 0.1s | |
| receiving sensitivity | -101dBm | |
| transmitting power | 1 milliwatt | |
| synchronous mode | Voice-over-air synchronization | |
| Feedback modalities | RJ45 wired transmission | |
| peripheral interface | DC12V,RJ45 | |
| Type of antenna | Built-in omnidirectional antenna | |
| size | Length, width and height: 167×157×197 (mm) | |
| weight | ≤1.8kg | |
| power dissipation | ≤15W | |
| working voltage | DC12V | |
| Heat dissipation method | natural heat dissipation | |
| working temperature | -25℃～+55℃ | |
| Humidity at work | 5%～95% | |
| Mean time between failures | MTBF＞10000h | |
