| Brand Name: | WSD |
| Model Number: | D20 |
| MOQ: | 2 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |
Fixed Detector Used Counter UAS
Fixed Detector, Fixed Drone Detector,Anti-drone equipment used in airports, railway stations, industrial parks, transportation hubs, security for important events, and full-area low-altitude control

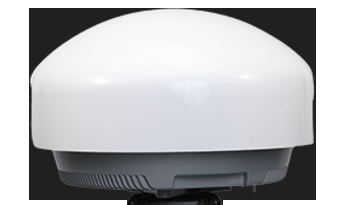

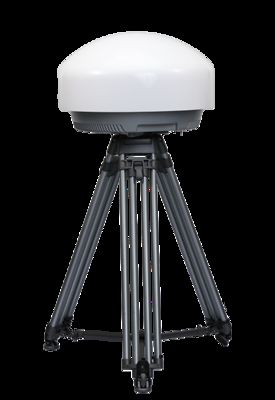

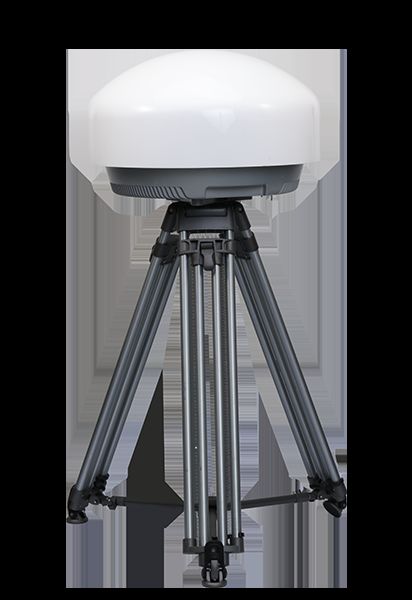

The fixed drone detector functions the drone detection, early warning, model dentification and positioning tracking within the detection range by detecting radio signals radiated by drones. It utilizes the radio spectrum analysis, AOA positioning, Drone ID and Remote ID.
FEATURES
Automatic Library Adding: Having the ability to expand the drone spectrum feature library, supporting on-site manual or automatic signal collection, and adding to the
feature library.
Multiple Models Identification: Supports identification of mainstream consumer drones such as DJI and Autel, as well as self-made drones, FPV, Wi-Fi drones, etc.,
Black and White List: Easy to differentiate the drones based on the list; Manageable to edit.
Support Device Networking: For non-DJI models, two or more device scan be networked for positioning and tracking.
SPECIFICATIONS
|
Frequency Range |
20MHz-8000MHz/20MHz-6000MHz/300MHz-6000MHz |
|
Response Time |
≤2s |
|
Detect Angle |
Horizontal angle: 360°;Vertical-20°-70 °for accurate direction finding, |
|
Detection Radius |
5-10km (depending on the environment and model) |
|
Azimuth Accuracy of Detection |
≤3° |
|
Protection Level |
IP66 |
|
WorkingTemperature |
-45℃ ~+70°C |
|
Dimension |
590mm*350mm |
