| Brand Name: | WSD |
| Model Number: | R10 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

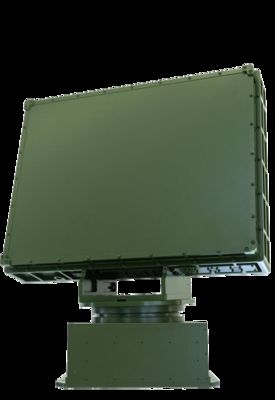

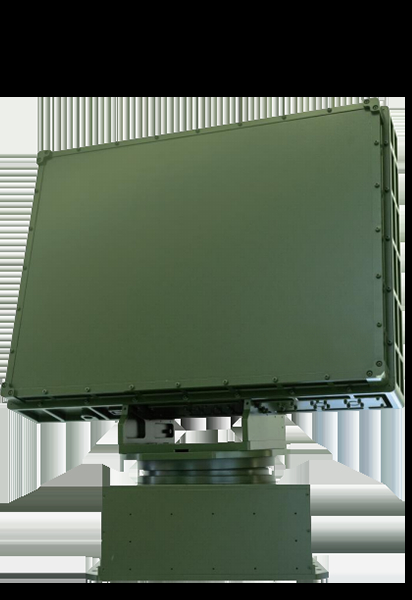

Radar Used Counter UAS
Low-altitude detection radar can obtain target's spatial position, movement status, RCS, target type, etc., in real time, including multi-rotor drones, fixed-wing drones, FPV, cruise missiles, swarms, etc.
FEATURES
Active Technology: Adopts solid-state active transceiver system design and digital signal processing technology.
High stability: Works in all-weather conditions and at all times of the day.
Effective Early Warning: Utilizes detection technology based on target motion characteristics to achieve accurate identification.
Multiple-Targets Tracking: Detection and tracking capabilities of multiple batches of targets.
SPECIFICATIONS
|
Working Frequency |
X/Ku |
|
Detection Radius |
≤ 10km (RCS=0.0l㎡) |
|
Blind Range |
≤ 200m |
|
Coverage |
Horizontal 0~360°,Vertical 0~30°/0~60° |
|
Speed Detection Range |
1m/s~200m/s |
|
Distance Measurement Accuracy |
≤ 10m |
|
Azimuth Measurement Accuracy |
≤ 0.5° |
|
Pitch Measurement Accuracy |
≤ 0.5° |
|
Data Rate |
3s/6s |
|
Number of Targets Detected Simultaneously |
≤ 200 |
