| Brand Name: | WSD |
| Model Number: | M313 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 5100 |

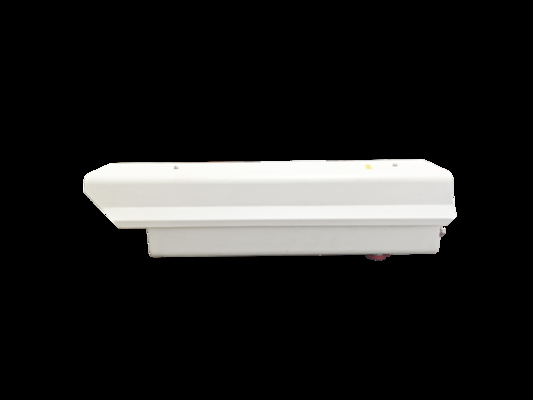

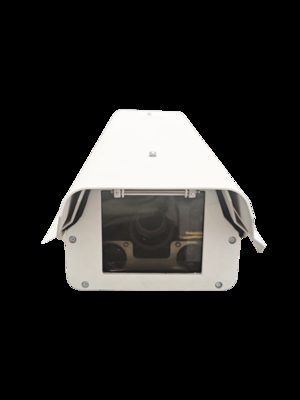

IMSI Catcher Integrated Bullet Camera
IMSI Catcher Integrated Bullet Camera, Bullet Camera with IMSI Catcher, IMSI Catcher with security protection, Protect the security of oil and gas facilities, villas, estates, and private spaces
1． Product Overview
The IMSI Catcher Integrated Bullet Camera device integrates license plate recognition, facial recognition, mobile phoneIMSI catch, and WIFI Client MAC address collection functions.
It supports the collection of IMSI information from all types of 4G mobile phones as well as MAC information.
The device is equipped with an 8-megapixel HD camera, capable of real-time acquisition of facial data (outside the vehicle) and license plate information.
2． Features
l High Integration: Equipped with an 8-megapixel HD camera, supporting facial recognition and license plate recognition; designed in the form of a bullet camera, integrated with multiple modules including 4G hotspot acquisition and MAC address collection.
l License Plate Recognition: High-speed information acquisition with accurate recognition of license plate number, plate color, vehicle color, and vehicle model.
l Facial Recognition: Precise acquisition with millisecond-level snapshot capability, ensuring high facial capture clarity.
l IMSI Collection: Full coverage of China Mobile, China Unicom, and China Telecom 4G networks, enabling seamless IMSI information collection without user perception.
l Rapid Capture: Mobile phones entering the coverage area are captured within 1 second, with a release cycle of 0.1 seconds.
3．Technical Specifications
|
Category |
Parameter |
|
Name |
IMSI Catcher Integrated Bullet Camera |
|
Model |
M313 |
|
Supported Networks |
4G Networks |
|
Operating Frequency Bands |
B1:2110～2170MHz B40:2300～2390MHz |
|
Number of Carriers |
2 |
|
Coverage Range |
＞100 m (with public network signal strength -80 dBm to -90 dBm) |
|
Operating Bandwidth |
5MHz |
|
Antenna Frequency Range |
1710～2700MHz |
|
Antenna Gain |
11.5dBi |
|
Receiving Sensitivity |
-101dBm |
|
Transmit Power |
200mW |
|
Synchronization Mode |
GPS or BeiDou |
|
Data Resume After Disconnection |
Supported |
|
Camera Type |
8 MP HD Camera |
|
Camera Functions |
Supports pedestrian, non-motor vehicle, and motor vehicle detection; supports facial recognition and license plate recognition |
|
Power-off Alarm |
Supported |
|
WIFI MAC Collection |
WIFI 2.4G/5.8G |
|
Antenna Type |
External Panel Antenna |
|
Protection Rating |
IP66 |
|
Dimensions |
640*183*140(mm) |
|
Operating Temperature |
-25℃～+55℃ |
|
Operating Humidity |
5%～95% |
|
MTBF (Mean Time Between Failures) |
MTBF＞10000h |
