| Brand Name: | WSD |

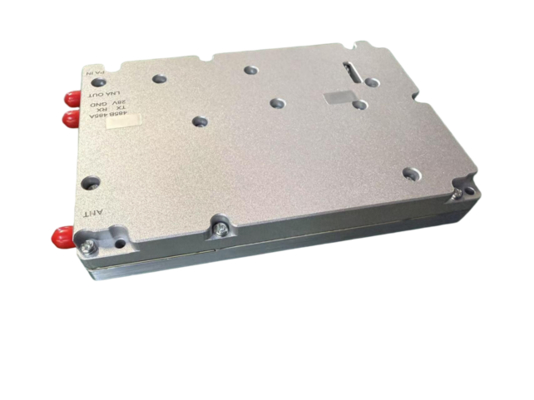

| Model Number: | TDD-B41-2.5G-80W-150100 |
| MOQ: | 1 |
| Price: | $650-1000 |
| Payment Terms: | L/C,D/A |
| Supply Ability: | 100 |
| Technical Specifications | UL | UL | |
|---|---|---|---|
| 1 |
Frequency Range B41 |
2496MHz -2690MHz | 2496MHz -2690MHz |
| 2 | Max Gain | 25±2dB | 53±2dB |
| 3 | Maximum Output Power | -- | 49±1dBm |
| 4 | Maximum Input Level | -- | +10dBm |
| 5 | ALC Range | -- | ≥10dB |
| 6 | Gain Adjustment Range | -- | ≥25dB |
| 7 | Gain Flatness |
-- |
ATT 10dB: ≤±1dB ATT 20dB: ≤±1dB ATT 25dB: ≤±1.5dB |
| 8 | Noise Figure | ≤3dB | -- |
| 9 | In-band Ripple | ≤2.5dB | |
| 10 | Tx-Rx Isolation | ≥55dBc | |
| 12 | EVM | ≤8% (PAR 10.0dB) | |
| 13 | VSWR (Input/Output) | ≤1.4 (Test with DL PA powered off. Verify DL PA is OFF before testing to prevent instrument damage.) | |
| 14 | Operating Voltage | 28V | |
| 15 | Operating Current (With APD) | ≤9.5A | |
| 16 | Working Temperature | -40～+55℃ | |
| 17 | Over-temperature Protection | +85°C: Alarm & Shutdown; +65°C: Restart | |
