Anti Tracking Device
Created with Pixso.

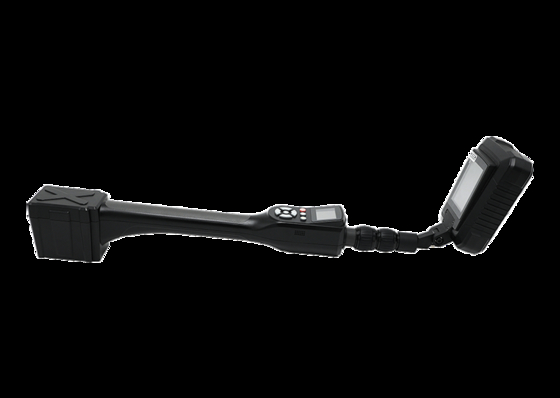

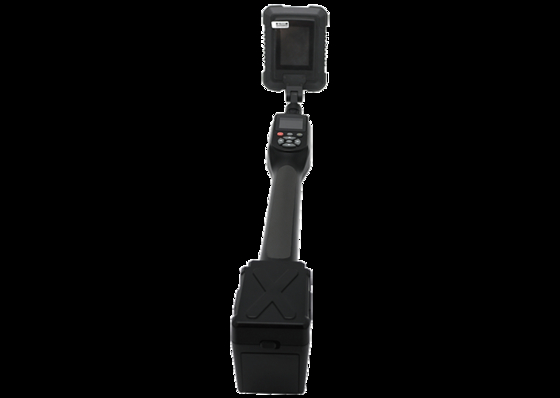

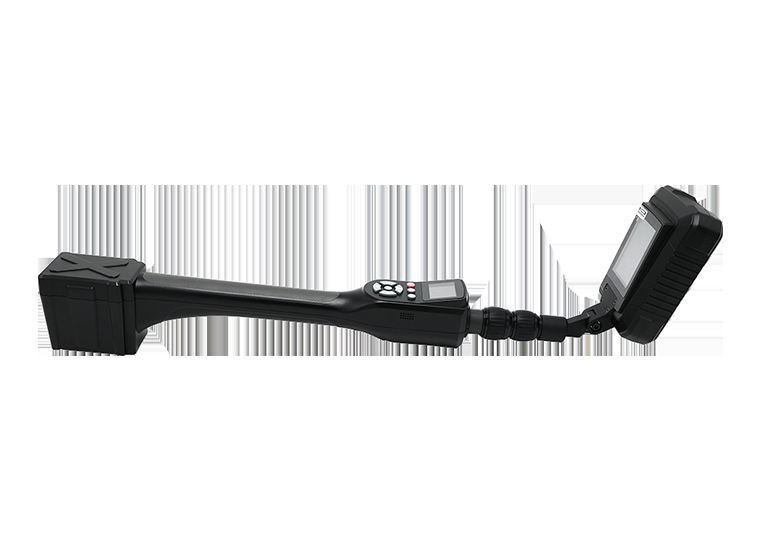

Portable Compact Detecting Hidden Cameras Lightweight Non Linear Detector

Portable Compact Detecting Hidden Cameras Lightweight Non Linear Detector

Brand Name: winspread
Model Number: AT-811
MOQ: 1
Price: $20000
Payment Terms: T/T
Supply Ability: 200
Detail Information
Place of Origin:
CHINA
Certification:
no have
Detection Range:
≥ 6 Meters, In Line With The Grade C Products Specified In GA1236-2015 Standard
Signal Detection Type:
GSM, WCDMA, CDMA2000, TD-SCDMALTE, LTE-A, 5G, Bluetooth, WIFI
Signal Reception Sensitivity:
-50dBm
Charging Interval:
Fast Charge 2.5 Hours Per Block
Working Temperature:
-30℃~+55℃
Supported Frequency Range:
50MHz~6000MHz
Highlight:

Portable Detecting Hidden Cameras

,

Compact Detecting Hidden Cameras

,

Lightweight Non Linear Detector

Product Description
Hidden Camera Detector with Wireless Signal and Nonlinear Node Detection

Detecting Hidden Cameras, Non-Linear Detectors, Portable, Lightweight And Compact, With Sensitive Detection

Product Attributes
Attribute Value
Detection range ≥ 6 meters, in line with the Grade C products specified in GA1236-2015 standard
Signal detection type GSM, WCDMA, CDMA2000, TD-SCDMALTE, LTE-A, 5G, Bluetooth, WIFI
Signal reception sensitivity -50dBm
Charging interval Fast charge 2.5 hours per block
Working temperature -30℃~+55℃
Supported frequency range 50MHz~6000MHz
Product Description

Hidden Camera Detector Can Detect Wireless Signals Without Power On And Dual-mode Detection Of Nonlinear Nodes

The enhanced nonlinear node detector integrates a wireless signal detection unit with the original nonlinear node detection module, enabling detection of electronic devices concealed within packages, walls, floors, ceilings, lighting fixtures, furniture, or containers regardless of whether they are powered on or operational.

Utilizing differential detection technology, it precisely locates suspicious devices, reducing verification costs and accelerating response times.

Portable Compact Detecting Hidden Cameras Lightweight Non Linear Detector 0
Key Features
  • Authoritative certification: Tested and certified by the First Research Institute of the Ministry of Public Security, in line with GA 1236-2015 nonlinear node detector industry standard
  • High sensitivity: Built-in high gain antenna, the receiving sensitivity is as low as -140dBm, can quickly identify the equipment hidden in walls or furniture, containing semiconductor devices
  • Precise positioning: Based on the principle of differential detection, the suspicious equipment is precisely positioned
  • Long detection distance: The maximum detection distance is not less than 6 meters, which meets the C class products specified in GA 1236-2015 standard
  • Long battery life: A single battery lasts more than 7 hours, which can meet a single detection task
  • High cost performance: Composite detection equipment, reduce the cost of secondary verification, greatly improve the efficiency of detection and save money
Technical Parameters
Nonlinear Node Detection Unit
Working frequency band 2400MHz
Frequency range 2.4GHz - 2.5GHz
Receive harmonics 4.8GHz-5.0GHz,7.2GHz-7.5GHz (2nd~3rd harmonic)
Transmitting power 0~4W (EIRP) (pulse mode, maximum)
Detection range ≥ 6 meters
Receiving sensitivity ≤-140dBm
Wireless Signal Detection Unit
Supported frequency range 50MHz~6000MHz
Signal detection type GSM, WCDMA, CDMA2000, TD-SCDMALTE, LTE-A, 5G, Bluetooth, WIFI
Wireless signal strength detection It can detect the strength of the wireless signal emitted by the suspicious equipment and give out an audible and visual alarm
Wireless signal direction positioning Can identify the source of wireless signals emitted by suspicious devices
Signal reception sensitivity -50dBm
Aspects of the Machine
Working voltage 7.4V
Battery life The lithium battery can be replaced, and the working time of a single battery is 7 hours
Charging interval Fast charge 2.5 hours per block
Interactive interface LCD display receives harmonic signal strength; audio prompt, headset; vibration prompt
Product size 750mm * 114mm * 108mm
Carton size 700mm * 330mm * 180mm
Product weight 1.6kg
Working temperature -30℃~+55℃
Working humidity Not more than 93%, no condensate
