| Brand Name: | WSD |
| Model Number: | WSD-GSM |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

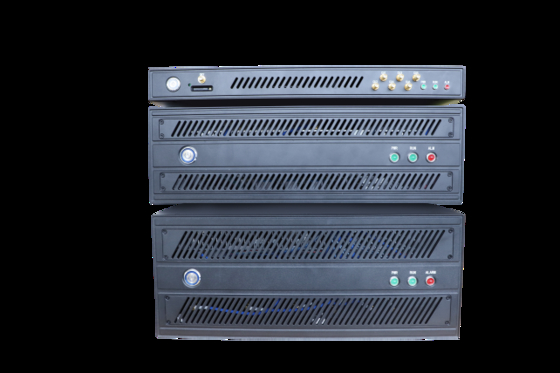

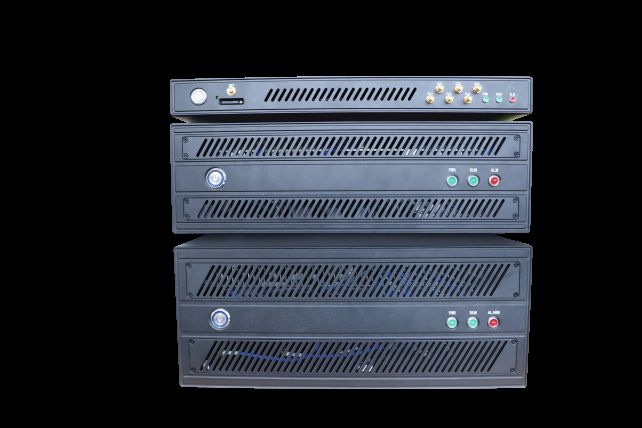

Cellular network management equipment
Full-mode cellular network management equipment is a tactical solution for cellular network full-mode (2G modes (expandable to 3G,4G,5G) communication management functions.

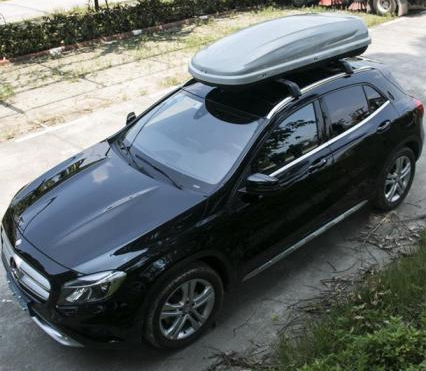

The system adopts the vehicle-mounted form and active mode, and can perform communication management functions for China Mobile, China Unicom, Telecom, radio and television and other operators and various network modes.
This system adopts the camouflage base station working mode, forms a full-mode and multi-band network coverage within the coverage range, and realizes extensive information collection, target direction finding, communication blocking and service analysis functions.
The full-mode cellular network management system has the following features:
(1) Support 2G system, complete and seamless coverage of frequency bands;
(2) Using the working principle of pseudo base station, the distance between the upper number is far, the success rate is high, and the lock is stable;
(3) The business analysis function is rich and diverse (including disguised and tampered business) to meet the needs of different scenarios;
(4) Support GSM A51/2 forced encryption network, high-order system downlink use;
(5) One-click setting, easy to operate;
(6) On-board mode, or fixed deployment.
This system can be widely used in the scenarios where code detection, direction finding and listening are required for cellular network communication within a certain range.
|
number |
content |
explain |
quantity |
remarks |
|
1 |
2G functional unit |
Supports WCDMA/GSM air port protocol functions |
1 set |
|
|
2 |
main control unit |
Including master control module, proxy module, decryption module, frequency scanning module, etc. |
1 set |
|
|
3 |
antenna element |
5G/4G/3G/2G transceiver antenna |
1 set |
|
|
4 |
console |
Business initiation and result presentation UI, laptop format |
1 set |
|
|
5 |
Portable positioning soldier |
Cooperate with the vehicle equipment to perform precise positioning, including small flat panel antenna |
1 unit |
|
|
number |
clauses and subclauses |
content |
remarks |
|
1 |
Supporting systems |
GSM/WIFI |
|
|
2 |
Supported frequency bands |
GSM:900M/1800M |
|
|
3 |
Supported number of carriers |
GSM: 2 carriers |
|
|
4 |
operate mode |
Active, modular design, plug-in box superposition |
|
|
5 |
Equipment type |
vehicular |
|
|
6 |
receiving sensitivity |
GSM:-100dbm |
|
|
7 |
Maximum transmission power |
≥20W/ carrier |
|
|
8 |
coverage area |
Maximum coverage distance varies depending on network environment and terrain: GSM:≥1km |
|
|
9 |
A5/1 key cracking performance |
Delay resolution: ≤0.35s; Cracking success rate: ≥95% (BER=0) |
|
|
10 |
Analysis type |
Voice, SMS |
GSM standard |
|
11 |
Number of parallel parses |
4 |
|
|
12 |
thermal adaptability |
Working temperature: -20℃ ~ 45℃ Storage temperature: -40℃ ~ 70℃ |
|
|
13 |
Humidity at work |
RH 95% |
|
|
14 |
working voltage |
Single phase alternating current 220V±10%,50Hz±5% |
|
|
15 |
MTTR |
≤1 hour |
replaceable units |
|
16 |
MTBF |
≥3600 hours |
|
|
17 |
Battery life |
4~8 hours, 8KWH battery |
Battery optional |
