| Brand Name: | WSD |
| Model Number: | PA2400-2500M-50G1 |
| MOQ: | 1 |
| Price: | $150-300 |
| Payment Terms: | L/C,D/A |
| Supply Ability: | 100 |

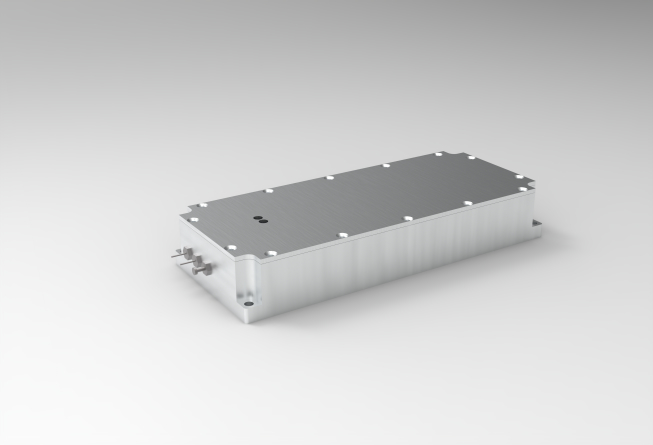

50W power noise amplifier
| Item name | Technical parameters |
|---|---|
| working frequency | 2400-2500MHz |
| Saturated power output | 47±1dBm |
| Gain | 45±1dB |
| In-band flatness | ≤±1dB |
| Input and output standing | ≤1.5 |
| Out-of-band spurs | 9kHz～1GHz:≤-36dBm/30kHz 1GHz～12.75GHz:≤-30dBm/30KHz |
| Operating Voltage | DC+28V |
| Working current | ≤3.5A |
| Power supply interface | Red &Black power cord |
| RF port | SMA-KFD |
| Amplifier size | 111*37.2*18mm |
| Operating temperature | -10～+55℃ |
| Relative humidity | 5%～95%,No condensation |
| Storage temperature | -25～+65℃ |
