| Brand Name: | WSD |
| Model Number: | BQX-TC-B05 |
| MOQ: | 1 |
| Price: | $10000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

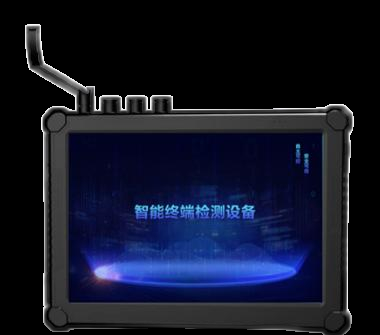

The BQX-TC-B05 Intelligent Terminal Detection System is a full-band, multi-mode, real-time digital wireless signal monitoring solution with advanced analysis capabilities. Specifically optimized for telecom operators' wireless communication protocols and industrial frequency standards, it delivers high-precision positioning and security protection for wireless devices.
| Frequency Range | 1MHz-12GHz |
| Signal System | WIFI2.4G/5.2G/5.8G, traditional Bluetooth, low power Bluetooth, 2/3/4/5G full operators and full system, 315-433M,800M,1.2G,1.4G 2.4G,5.2G,5.8G and other common communication frequency bands |
| Testing Range | 10cm-10m |
| Operating Time | More than 3 hours |
| Antenna | 3D Bi, omnidirectional antenna |
| Processor | High-performance CPU |
| Operating System | Open source operating system |
| Screen | 7 inches, 1920*1200 resolution |
| Storage | More than 256GB |
| USB | Type-C 18W fast charging |
| Operating Temperature | -10℃ to 50℃ |
| Special Features | Supports USB access to special laser camera detection and endoscope detection |
| Report Export | Supports external USB storage export |
| Product Name | Quantity | Remarks |
|---|---|---|
| BQX-TC-B05 intelligent terminal testing equipment | 1 unit | |
| Product charger | 1 | |
| Product specification | √ | |
| Certificate | √ | |
| Warranty card | √ | |
| Antenna | √ |
