| Brand Name: | WSD |
| Model Number: | GCDY-002 |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 |
Fixed-Site Integrated UAV Detection, Defeat, and Deception System
1 Product Overview
1.1 Product Overview
The fixed-mounted integrated detection, interception, and deception device for UAVs is a product capable of precisely locating UAVs and their operators (remote controllers), as well as suppressing or deceiving UAVs. Through in-depth spectral analysis and feature recognition of UAV signals, this single-unit device enables real-time monitoring of multi-dimensional information—including the serial number, model, location, speed, altitude, flight path, and operator position—of UAVs within its detection range, and allows for the control of UAVs via suppression or deception. The device is easy to deploy and can be applied to low-altitude security operations in fortified defense scenarios.
1.2 Product Composition

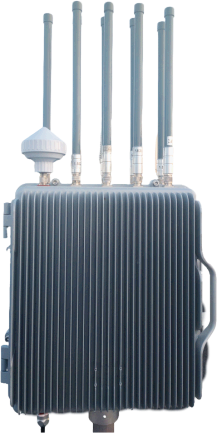

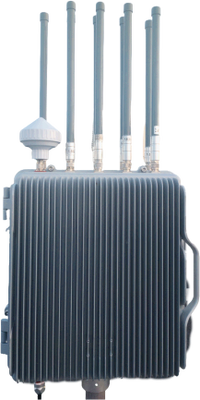

Figure 1: Photograph of the equipment
| Item | name | function |
| 1 | RF detection antenna | Designed to receive 2.4 GHz and 5.8 GHz RF signals |
| 2 | Attacking RF antennas | Used for transmitting in 2.4 GHz, 5.8 GHz, 1.5 GHz, and 900 MHz bands. Frequency signal |
| 3 | GPSantenna | For receiving the GPS antenna |
| 4 | internet access | For use with an external computer |
| 5 | source | For equipment power supply |
| 6 | Enclosure Host | Used for signal reception processing |
Table 1: Component Names and Functions
| Item | name | quantity | unit |
| 1 | Equipment Host | 1 | Island |
| 2 | antenna | 10 | root |
| 3 | Network cable | 1 | root |
| 4 | power line | 1 | root |
Table 2: Hardware Composition List
Product Specifications
2.1 Functional Features
| Model Identification | Can parse the unique serial number of the drone |
| Drone positioning | Capable of pinpointing the takeoff point and real-time flight position of the drone. |
| Drone Pilot Positioning | Enables real-time positioning of the drone remote controller. |
| Navigation deception | It enables the deception of drones to achieve targeted ejection or area denial. |
| Alarm display and voice alert | Upon detecting a drone, the interface displays alert information and provides voice prompts. |
| Real-time log push | Real-time recording of UAV protocol analysis data |
| Whitelist Configuration | White-list configuration can be performed using the drone serial number. |
| Multi-unit grid interconnection | Transmit information to the command and control platform via the TCP protocol, with multiple devices collectively covering a wide area. |
| Drone countermeasures | Manual mode or drone watch mode can be used to repel drones and force them to land. |
| Mobile Response | Instant deployment—ready to use right after startup. |
2.2 Parameter Characteristics
| Detection range | 1.5–4 km (range depends on the operating environment) |
| Detection frequency band range | 900MHz,1.5GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection time | Under normal conditions, the detection time is ≤5 seconds (this duration may vary depending on the distance between the drone and the target). |
| Detectable drone models | Capable of detecting mainstream consumer drones, FPV drones, and DIY drones on the market, with a detection rate exceeding 98%. |
| Minimum detection altitude | ≤2m |
| Positioning accuracy error | ≤5m |
| Positional accuracy | ≤5° |
| Interference mode | Emergency landing / Return flight / Custom |
| Interference frequency band range | 900 MHz, 1.5 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz (customizable) |
| interference distance | ≥2km |
| Single-band transmission power | 50W |
| Interference response time | ≤5s |
| Deception power | ≤10W |
| Deception distance | ≥3km |
| Horizontal range of action | 0~360° |
| vertical angle | ≥45° |
| Multi-objective capabilities: | ≥30 aircraft |
| Main unit weight | 13KG |
| pilot lamp | Equipped with a work indicator light |
| levels of protection | ≥IP66 |
| work environment | -35℃-+55℃ |
