Portable UAV Countermeasure
Product Overview
Portable drone countermeasures utilize electromagnetic waves operating within specific frequency bands to interfere with drone communication links, forcing the drone to lose control, resulting in the loss of imagery or navigation guidance, and triggering protective mechanisms such as hovering, landing, or returning to base, thereby enabling effective control over "unauthorized flying" drones.
External morphology
1. Trigger 2 Power On/Off Button
3. Discharge Port 4. Display Screen 5. Battery Charging Port
Product Operating Instructions
Power On/Off Procedure

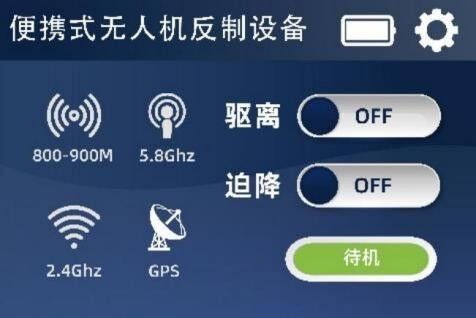

(1) Press the power button to turn on the device; during the initial boot-up process, the display will show:
(2) After completing use of the equipment, simply press the power button to turn it off.
Function Selection
(1) Evacuation or forced landing
(1) When the equipment ejection or forced landing function is not enabled, the corresponding button on the display screen will be in the OFF state:
(2) By manually clicking the button, the evasive or forced landing function can be activated; the button on the display will then show an "ON" status:
(2) Any Frequency Band Selection
Simply touch to activate the selection of any strike frequency band; selected strike frequency bands will be displayed in blue on the screen, while unselected strike frequency bands will be displayed in white:
Trading Restrictions
After pressing the trigger on the device, striking can begin; during striking, the display screen will show:
Configuration settings.
(1) Tap the Settings button in the upper-right corner of the screen to access the Settings interface;
(2) To adjust the screen brightness, manually click the brightness adjustment switch:
Battery charging and discharging operations
(1) Connect one end of the device charging cable to the battery charging port and plug the other end into a power source to charge the device's battery.
(2) After connecting the USB cable to the discharge port, connect the device's battery to charge external devices.
technical parameter
| Screen Control | 3.5-inch Touchscreen |
|
Interference Band |
433 MHz/868 MHz/915 MHz/ 2.4GHz/5.2 GHz/5.8GHz |
| interference distance | ≥2 km (open area) |
| interference power | 20W / Single frequency band |
| Dry-to-Wet Ratio | 1.:1 |
|
Interference Mode |
Evacuation/forced landing Custom Frequency Band Selection |
| Main unit weight | 3Kg |
| levels of protection | ≥IP54 |
|
supply electricity |
Full battery runtime:>8 hours Equipped with a removable lithium-ion battery 28V/6000mAh Supports external USB 5V power supply Can be equipped with an additional battery separately. |
| Packaging box weight | 5.2Kg |
| Packaging box dimensions | 350×800×160(mm) |
