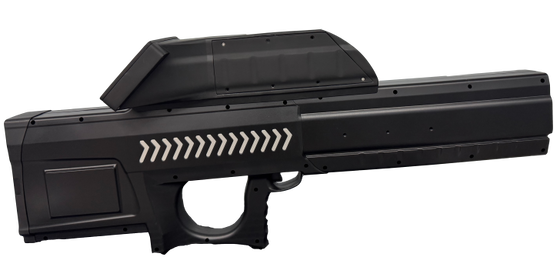

Portable Integrated Counter-UAS Detection and Defeat Gun

Portable Integrated Counter-UAS Detection and Defeat Gun

• Product Introduction

The Portable Integrated Counter-UAS Detection and Defeat Gun integrates spectrum sensing, artificial intelligence, and radio frequency jamming technologies. It provides detection, countermeasure, display and control, power supply, and networking functions, enabling effective detection, identification, and countermeasure of various unauthorized ("black flight") drones.

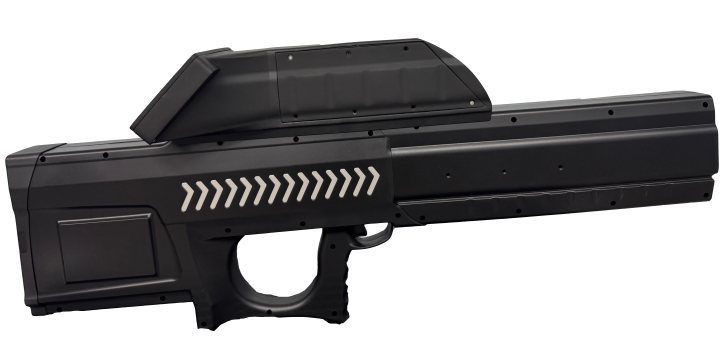

• Appearance

• Product Operating Instructions

21. Power On/Off

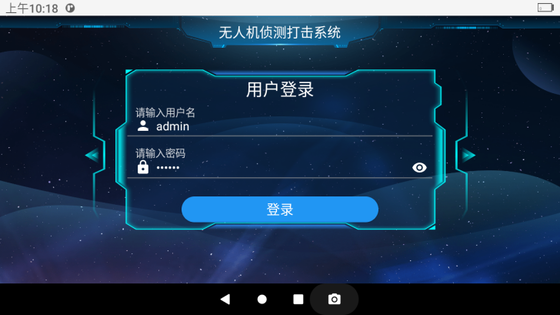

Press the power button to power on/off the device. When powered on, the display shows the login screen. Tap "Login" to enter the home page. Press the button again to power off after use.

21. Detection Operation

(1) When an unauthorized ("black flight") drone is detected, a voice alarm is triggered. The display shows basic drone information and spectrum information. Basic drone information includes model, distance, altitude, angle, SN code, pilot latitude/longitude, drone latitude/longitude, and takeoff point latitude/longitude. Spectrum information includes drone video transmission frequency, signal strength, and frequency type.

(2) The five icon buttons on the left side of the home page are, in order: layer switch button, return-to-device-location button, voice alarm toggle button, trajectory toggle button, and defeat operation button.

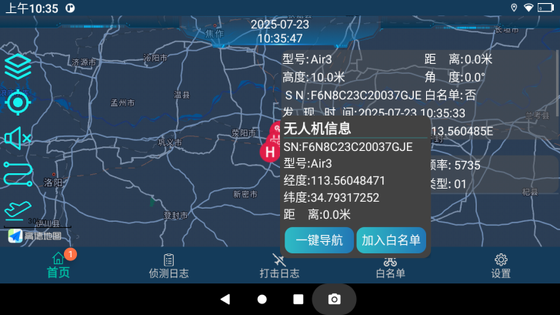

(3) The home page displays three icons: drone, pilot, and takeoff point. Tap any icon to view the corresponding basic information, and options to add to whitelist or perform one-tap navigation.

21. Defeat Operation

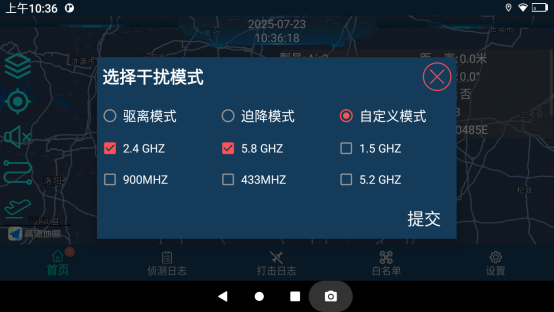

(1) Tap the "Defeat Operation" button on the left side of the home page to enter the jamming mode selection screen. There are three modes: Repel, Forced Landing, and Custom. Repel mode defaults to 2.4 GHz and 5.8 GHz selected; Forced Landing mode defaults to 2.4 GHz, 5.8 GHz, and 1.5 GHz selected; Custom mode allows manual selection.

(2) Select the mode, tap "Submit," then pull the trigger to begin the defeat operation.

21. Log Operation

(1) Tap "Detection Log" at the bottom of the screen to enter the detection log screen. The detection log includes the total number of drones detected and total detections. Each detection record includes last detection time, first detection time, drone model, drone SN code, and detection count. Tap a detection record to replay the drone's flight trajectory.

(2) Tap "Defeat Log" at the bottom of the screen to enter the defeat log screen. The defeat log includes the total number of defeat operations. Each defeat record includes start time, end time, and jamming frequency bands. Tap "Clear Log" in the upper right corner to display a log clearing confirmation dialog.

21. Whitelist Operation

(1) Tap "Whitelist" at the bottom of the screen to enter the whitelist screen. The whitelist includes the total number of whitelisted drones. Each whitelist entry includes drone model, SN code, and authorization time. To remove an entry, tap the "Delete" button next to the corresponding whitelist entry. Alternatively, tap "Clear Whitelist" in the upper right corner to display a whitelist clearing confirmation dialog. Confirm to clear all whitelisted drones.

21. Settings Operation

(1) Tap "Settings" at the bottom of the screen to enter the settings screen.

(2) Settings parameters:

Function Settings:

• Drone Retention Time: Sets the retention duration of drone historical data in seconds. Default: 60 s. Recommended range: 40–80 s.
•
• Device Warning Radius: Sets the warning circle radius in meters. Default: 800 m.
•
• Spectrum Retention Time: Sets the retention duration of drone spectrum information in seconds. Default: 20 s.
•
• Device Alert Type: Options are "Ring" and "Vibration." Tap to select. Default: Ring.
•
• Home Map Style: Options are "Offline Map" and "Online Map." Tap to select. Default: Online Map.

Display Settings:

• App Theme: Tap the radio button before "Light" or "Dark" to switch themes. Default: Light.
• App Language: Options are Simplified Chinese, English, and Russian. Tap to select. Default: Simplified Chinese.
• Latitude/Longitude Format: The format for displaying latitude/longitude after a drone is detected on the home page. Default: DD.DDDDDD°.

Other Settings:

• App Version: Not modifiable; used to distinguish App program versions for upgrades. Default: 2.4.40.
• Android Version: Not modifiable; displays the current Android version of the hardware device.

21. Battery Charging and Discharging

(1) Connect one end of the charging cable to the battery charging port and the other end to a power source to charge the device.

(2) Connect a USB cable to the discharging port to use the device battery to charge external devices.
