| Brand Name: | WSD |
| Model Number: | D40 |
| MOQ: | 5 |
| Price: | Price negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

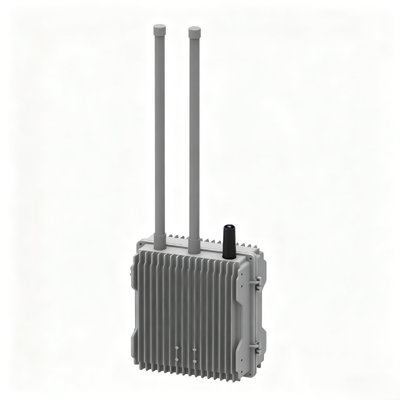

Remoted Receiver
1.Overview
The Remote ID Receiver enables real-time tracking and identification of drones by displaying critical flight data, including the drone’s serial number (SN), current position, speed, altitude, takeoff point, and the pilot’s location.
2. FEATURES
Precise Positioning – Capable of receiving and decoding Drone ID signals to extract Remote ID information, as well as determine the drone’s and pilot’s positions.
Firmware Updatable – Supports firmware upgrades to ensure the device remains current with the latest enhancements.
Multi‑Standard Compatibility – Compliant with both the U.S. ASTM F3411‑22a and the European ASD.STAN PrEN 4709‑002 standards.
ADS‑B Integration – Can receive and decode ADS‑B signals, enhancing situational awareness and providing comprehensive monitoring of surrounding airspace.
3. SPECIFICATIONS
|
Parameter |
Typical Value |
|
Working modes |
RemoteID (standard),ADS-B (extended) |
|
Monitor radius |
1-2km (omnidirectional) |
|
Refresh rate |
2-3S/time |
|
Multi Target Monitoring |
≥12 drones and pilots (simultaneously) |
|
Equipment size (L*W*H) |
400mm*23lmm*135mm(without antenna) |
|
Equipment weight |
4.2kg |
|
Working temperature |
-40°C ~+70°C |
