| Brand Name: | WIN&SD |
| Model Number: | QC-R1 |
| MOQ: | 1 |
| Price: | ￥3000 |
| Supply Ability: | 100 |
Multi-Carrier SIM Router
1. Product Overview

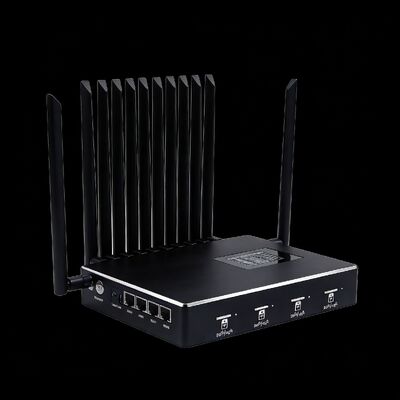

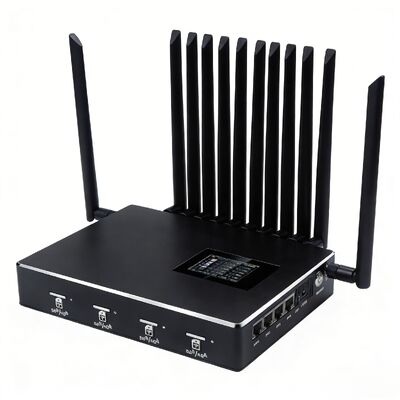

QC-R1S Series Multi-SIM Bonding Router – High-Reliability Connectivity for Mobile Environments
The QC-R1 series multi-SIM bonding router is engineered with multiple 4G/5G communication modules, enabling simultaneous use of SIM cards from different network operators. By aggregating bandwidth from multiple internet links via cloud servers, it significantly enhances both uplink and downlink throughput in mobile scenarios. The solution effectively eliminates cellular dead zones, reduces network latency, and ensures superior network availability for mission-critical applications.
Key Benefits:
Bandwidth Aggregation: Combines multiple operator links for increased throughput
Seamless Mobility: Maintains stable connectivity in moving vehicles or temporary deployments
Enhanced Reliability: Reduces signal blind spots and network latency
Cloud-Managed: Intelligent link aggregation via dedicated cloud servers
2. Product Parameters
|
project |
technical parameter |
||
|
edition |
R1-G44 |
R1-G5143 |
R1-G5242 |
|
Communication Module |
4G*4 |
5G+4G*3 |
5G*2+4G*2 |
|
Gigabit LAN port |
2 |
3 |
3 |
|
Gigabit WAN port |
1 |
||
|
SIM card hot swap |
support |
||
|
display screen |
Display battery level, module status, signal strength, carrier, and real-time network speed |
||
|
WIFI |
Supports 2.4G/5G dual-band |
||
|
Battery life |
Built-in lithium battery, battery life ≥7 hours |
||
|
quick charge |
support |
||
|
other |
Customizable standard 1U rack version |
||
3. Usage scenarios
Multi-Carrier Bonding Router – The Ultimate Connectivity Solution for Mobile, Temporary, High-Reliability, and No-Coverage Scenarios
Bandwidth Enhancement
Through intelligent load balancing, network traffic is distributed across multiple active links, achieving total aggregate throughput approaching the sum of individual link bandwidths. Ideal for large downloads, HD video streaming, and bandwidth-intensive applications.
Network Redundancy & High Availability
Automatic failover ensures continuous connectivity: when any SIM card experiences weak signal or service loss, traffic is seamlessly redirected to alternative operational SIM networks, dramatically improving overall network reliability.
Intelligent Routing
Advanced algorithms dynamically select optimal transmission paths based on real-time parameters including signal strength, network latency, and data usage patterns, ensuring peak performance under varying conditions.
Unmatched Flexibility
Free from physical network cable constraints – establish a robust network connection anywhere within operator coverage areas, enabling rapid deployment in remote or temporary locations.
