| Brand Name: | WIN&SD |
| Model Number: | QC-D3-G5 |
| MOQ: | 1 |
| Payment Terms: | L/C |
| Supply Ability: | 100 |
5G Smart Terminal – Cross-Regional Intercom & Wireless Image Transmission
1. Product Overview

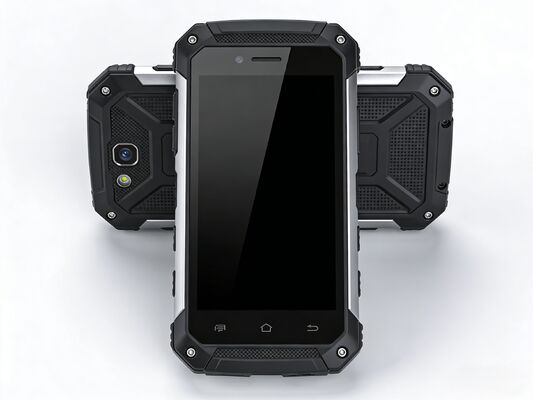

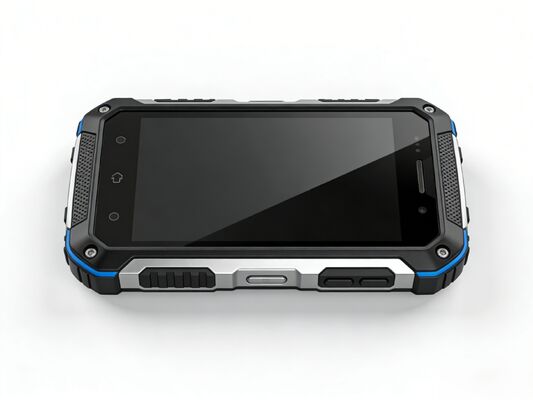

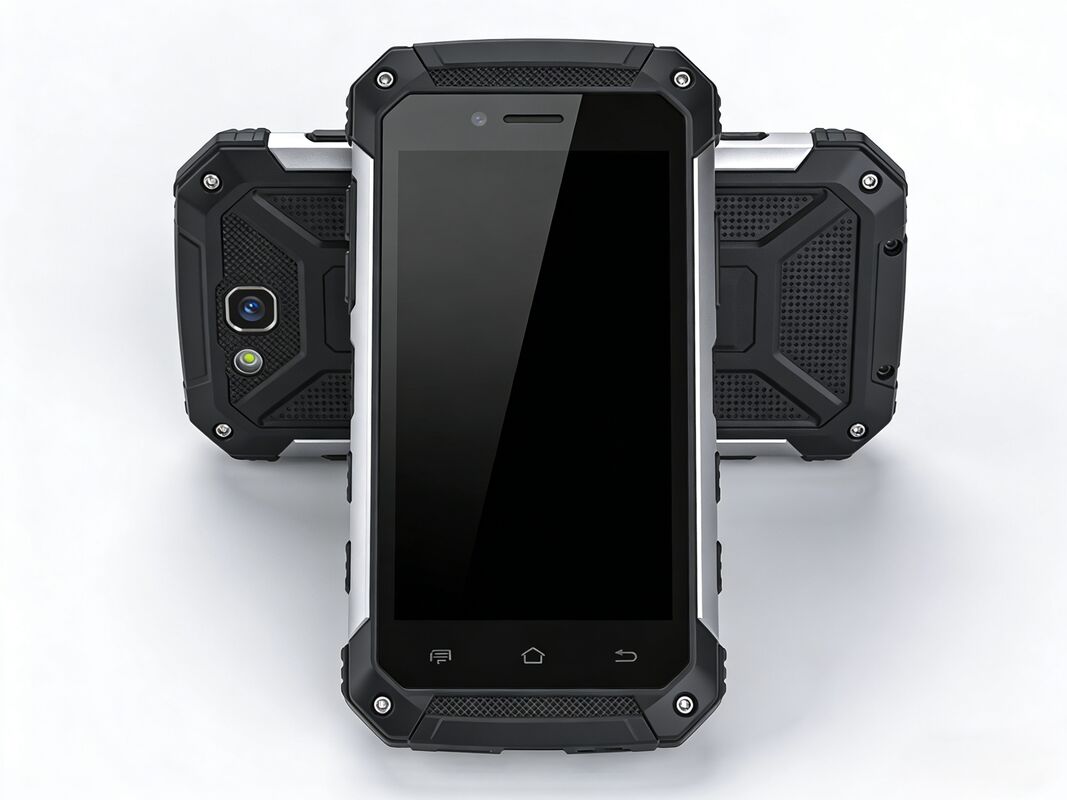

QC-D3-G5S Series 5G Rugged Intelligent Terminal
Built on a customized Android 11 operating system, the QC-D3-G5 series 5G rugged terminal integrates advanced system software to enable diverse applications including cross-regional intercom and wireless image transmission.
Key Features:
Powerful Performance: 8-core processor with 7nm process technology delivers robust computing power for multi-scenario business enablement
Integrated Applications: Seamlessly supports real-time cross-regional voice communication and wireless video transmission
Rugged Durability: Engineered with industrial-grade protection for reliable operation in harsh environments
2. Features
Processor: High-performance octa-core CPU for fast and responsive operation
Display: 6.7-inch IPS HD touchscreen with vivid clarity
Camera System: Five-lens configuration (front and rear) for versatile multi-scenario applications
Battery: 6000mAh high-capacity lithium battery for extended usage
Biometric Security: AI-powered facial recognition + fingerprint recognition for secure unlock
Protection Rating: IP68 – dustproof and waterproof for rugged environments
Operating System: Android 11 with intuitive humanized interface
Connectivity: 5G network support with dual Nano SIM cards
Charging: 15W wireless charging capability
3. Product Parameters
|
project /Item |
Specifications Description |
|
system |
Android 11 |
|
CPU |
2.2GHz Eight-Core |
|
internal storage |
8GB+128GB |
|
Network Mode |
GSM/WCDMA/LTE-FDD/LTE-TDD/5G NR |
|
Slot type |
Support dual Nano SIM |
|
screen |
TFT 6.517HD+ IPS 720*1600,10-point capacitive touchscreen, glove-friendly |
|
camera |
Front 16MP, rear 48MP+80MP+20MP+3MP |
|
flash lamp |
2 high-brightness flash |
|
battery capacity |
Built-in 5180mAh lithium-ion polymer battery |
|
weight |
Weight: 296.5g; size: L175.9*W82.5*H14.25mm |
|
classification of waterproof |
IP68 |
|
suona |
1216 Waterproof Speaker Box |
|
telephone receiver |
1206 waterproof handset |
|
microphone |
Call noise reduction (Dual Silicon Microphone) |
|
USB |
Type-C USB 2.0, supports 2A fast charging |
|
PDA |
BT 5.0 |
|
WIFI |
802.11 a/ac/b/g/n,2.4/5GHz Dual-band |
|
fixed position |
GPS/GLONASS/BeiDou/Gelileo |
|
OTG |
support /YES |
|
fingerprint identification |
support /YES |
|
NFC |
support /YES |
|
Public network intercom |
Global POC Public Network Two-way Communication, Distance-Free Two-way Communication |
