| Brand Name: | WSD |
| Model Number: | D30 |
| MOQ: | 2 |
| Price: | Price Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

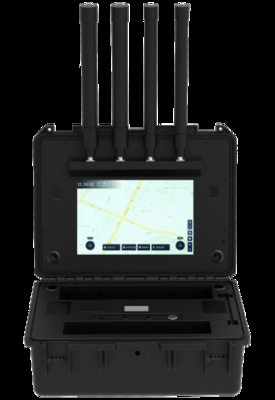

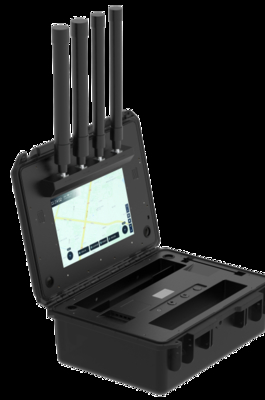

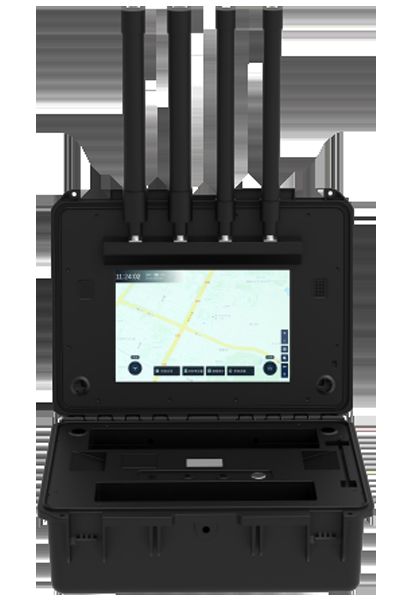

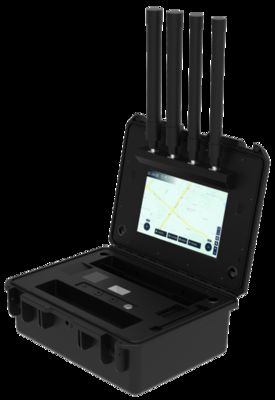

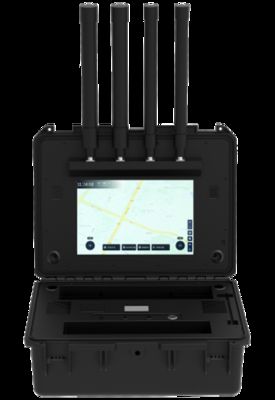

Suitcase Detector
Suitcase Detector used Counter-UAS, Anti-drone equipment used in airports, railway stations, industrial parks, transportation hubs, security for important events, and full-area low-altitude control
1.Overview
The suitcase detector can not only detect, recognize, position, track the UAVs, but also set off the audible and visual alarm for the drones. It can support the function of multi-targets tracking simultaneously by marking different colors to visualize the flying route of each drone.
2. FEATURES
Accurate Positioning: Accurately recognize the mainstream drone's model, azimuth, serial number, distance, height, latitude and longitude.
Black and White List: Easy to differentiate the drones based on the list; Manageable to edit.
Flexibility: Built-in battery, small size, lightweight, easy to carry and use.
Multiple Modes of Identification: Supports the radio spectrum, Drone ID and Remote ID.
3. SPECIFICATIONS
|
Parameter |
Typical Value |
|
Operating Frequency |
20 MHz ～ 6000 MHz |
|
Detection Response Time |
≤ 3 s |
|
Detection Angle |
Horizontal 360° |
|
Detection Radius |
5 km ~ 10 km (depends on wireless environment and target model) |
|
Direction Finding Accuracy |
≤ 3° (RMS) |
|
Power Consumption |
80 W |
|
Screen Size |
13.3 inch |
|
Power Supply |
Battery / Adapter |
|
Protection Level |
IP65 |
|
Operating Temperature |
–20℃ ~ +55℃ |
|
Device Weight |
16 kg |
