| Brand Name: | WSD |
| Model Number: | -WSD-DXK3000N |
| MOQ: | 1 |
| Price: | $ 10000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

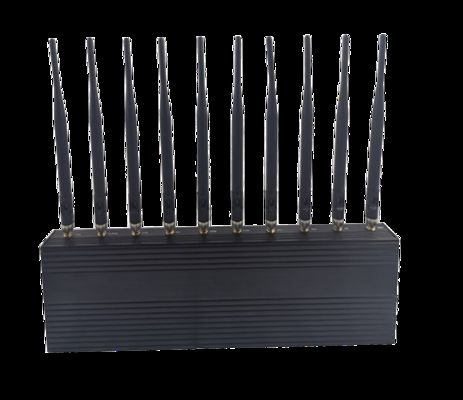

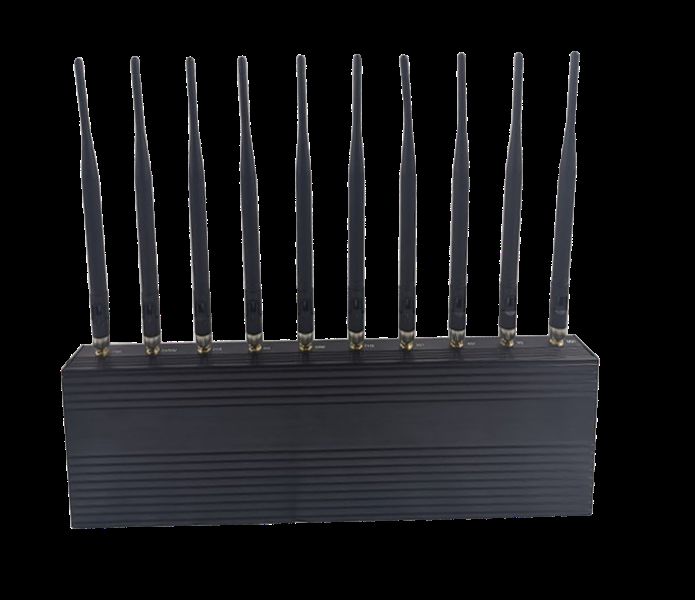

Full-band mobile phone and three-frequency WIFI signal shunt
1. Product Overview
The current main models of this series of blockers are full frequency communication signal blockers, all of which are third-generation green signal blockers. They only block the reception of on-site mobile devices and have no impact on surrounding base stations.
This type of model adopts split output, with a single transmission power not exceeding 30W, and each channel output ranging from 2W to 3W. The device adopts an omnidirectional antenna array, which greatly increases the shielding distance and shields various mobile phone signals within a range of 10-30 meters (depending on the strength of the base station signal), completely interrupting the communication between all mobile phone communication devices within the shielding range and the outside world.
2. Product Features
Adopting high dispersion aluminum alloy shell, the working temperature is low, and the shielding effect is more stable.
Built in silent turbofan with low operating noise.
Separate power adapter.
Can work with 12V/24V DC power supply, convenient for mobile work in vehicles.
The external antenna design and unified interface at one end make the appearance more beautiful and appropriate. And it has an anti loosening design, with the antenna and host labeled with working frequency bands for easy one-to-one correspondence.
Adopting advanced chips and technologies, with a slow start circuit design and high integration;
Adopting ultra-high frequency interference technology, only interfering with the downlink and not interfering with the base station;
Adopting multi-channel segmented independent shielding technology, the effect is better;
Intelligent remote control or manual switch control machine operation, effective shielding range of 10m-30m (depending on the operator's network signal status);
Can work continuously without stopping the machine all year round;
Can expand the interference frequency band according to user needs;
3. Product Parameters
|
Physical parameters |
indicators |
|||
|
size |
420×120×42mm (length * width * height). |
|||
|
weight |
2.8 kg |
|||
|
Electrical parameters |
outlet end |
service frequency |
Bandwidth output power |
Channel output power |
|
5G |
3400-3500MHz |
34dBm |
6dBm/30KHz(min) |
|
|
CDMA/GSM |
870-960MHz |
34dBm |
5dBm/30KHz(min) |
|
|
DCS |
1805-1920MHz |
33dBm |
2dBm/30KHz(min) |
|
|
Radio and Television 5G |
758-803MHz |
33dBm |
2dBm/30KHz(min) |
|
|
3G |
2010-2145MHz |
33dBm |
2dBm/30KHz(min) |
|
|
5G1 |
3500-3600MHZ |
33dBm |
2dBm/30KHz(min) |
|
|
WIFI2.4G |
2300-2500MHZ |
31dBm |
2dBm/30KHz(min) |
|
|
WIFI5G |
5150-5300/5725-5875MHZ |
31dBm |
2dBm/30KHz(min) |
|
|
5G2 |
4800-4900MHZ |
31dBm |
2dBm/30KHz(min) |
|
|
4G |
2515-2675MHZ |
31dBm |
2dBm/30KHz(min) |
|
|
Scope of coverage |
10-35m (depending on the network signal strength of the mobile phone operator) |
|||
|
Power supply and power consumption |
AC110-220V/DC5/12V (optional), power consumption: 100W. |
|||
|
Working/storage temperature |
Working temperature: -10℃~+55℃; storage temperature: -20℃~+60℃. |
|||
