| Brand Name: | WSD |
| Model Number: | WSD-BIK8500 |
| MOQ: | 1 |
| Price: | negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 20 |
BIK8500 single soldier portable communication terminal
Wireless Ad-hoc Network Travel , Self-driving , Security - Outdoor Wireless Communication Single Soldier Portable Communication Terminal Establish Remote Data Access And Audio And Video Scheduling
1. Product overview
The BIK8500 is a portable 5G communication terminal designed for emergency response teams. This device integrates a 5G gateway with audio-video transmission capabilities, delivering secure, reliable, and flexible wireless broadband connectivity. Beyond providing network access, it enables real-time emergency communications through remote data integration and video conferencing functions.

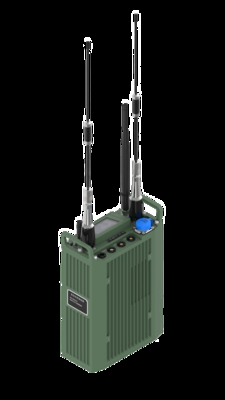

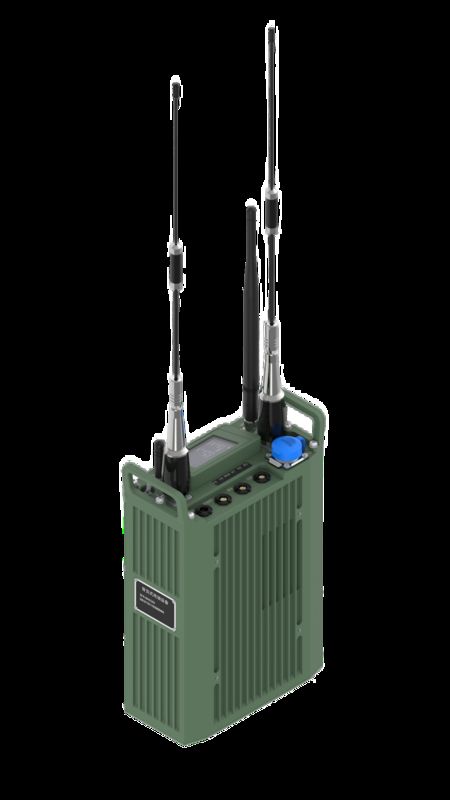

2. product appearance
3. key property
(1) High-speed wireless transmission: The product is based on 3GPP R15 standard and supports high-speed data transmission.
(2) Rich professional interfaces: 1 HD HDMI interface, 1 aviation plug hand-microphone interface, 1 headset interface, 1 aviation plug Ethernet interface; 1 external TF card and 1 external SIM interface, support GPS/BD, meet a variety of mainstream data access needs.
(3) High reliability: dual protection of software watchdog and hardware watchdog, multi-level link detection mechanism and automatic fault recovery mechanism.
(4) Function versatility: it has basic functions such as routing management, configuration import and export, firewall, NAT, PAT, DMZ, DHCP, and multi-IP setting.
(5) VPN: VPN functions such as IPSec, GRE, L2TP and L2VPN.
(6) High efficiency: traffic management technology and bandwidth intelligent distribution technology; one-click reset; device configuration free.

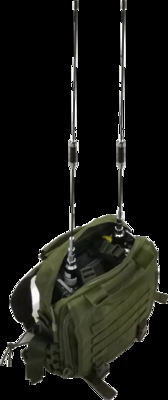

(7) Easy to carry: you can choose to carry a backpack or portable suitcase.
4. Hardware specifications
|
name |
specifications |
|
technical norms |
5G: 3GPP Release 15 WiFi: IEEE 802.11b/g/n,150Mbps |
|
Working frequency band |
5G NR: n28 WiFi: 2.4G/5G WiFi: 2.4G/5G |
|
Maximum transmission power |
5G NR: 37dBm WiFi: 17dBm WiFi: 17dBm |
|
antenna |
5G NR: n28: External antenna, standard configuration 3dBi omnidirectional WiFi: 2.4G/5G: External antenna, standard configuration 3dBi omnidirectional WiFi: 2.4G/5G: External antenna, standard configuration 3dBi omnidirectional BD/GPS: 1561M/1575M: External antenna, standard configuration 3.5dBi |
|
Ethernet interface |
10/1000M adaptive aviation plug, quantity 1 |
|
Video interface |
Standard HDMI interface, quantity 1 |
|
Audio interface |
Air port interface, quantity 1; Earphone interface, quantity 1 |
|
memory interface |
Built-in TF card interface, number 1 |
|
Display interface |
2.8 inch display frequency |
|
Size (W x H x D) |
200*100*300 |
|
weight |
～5kg |
|
supply electricity |
Air power plug, DC24V input |
|
Air power plug, DC12V output |
|
|
Built-in battery power is not less than 4 hours |
|
|
Mode of carriage |
Poles or backpacks |
|
power dissipation |
≤35W |
|
working temperature |
Working temperature: -25—60℃ Storage temperature: -40—85℃ |
|
Humidity at work |
5-95% no condensation |
|
levels of protection |
IP65 |
5. Software specifications
|
basic function |
Browser configuration |
|
|
Supports local log recording and log server log recording |
||
|
Support CLI debugging |
||
|
Status is displayed in real time |
||
|
Support external reset key or software reset, restore factory Settings |
||
|
Configure the import and export functions |
||
|
LTE link retention |
ICMP heart rate detection |
|
|
Break line automatic repair technology |
||
|
Network status monitoring |
Using the WEB interface, users can monitor and manage the network status of the device and the signal quality of the network service |
|
|
firewall |
You can set multiple firewall filtering rules to filter specified IP addresses or ports |
|
|
Routing management function |
Supporting state routing, you can add multiple routing table entries |
|
|
Network functions |
support DDNS |
|
|
support NAT |
||
|
Support DHCP service |
||
|
Support MAC address binding |
||
|
support DMZ |
||
|
Supports port mirroring |
||
|
Link backup |
||
|
VPN function |
support IPSec |
|
|
support GRE |
||
|
Support L2TP |
||
|
Support L2VPN |
||
