| Brand Name: | WSD |
| Model Number: | WSD-CPE-B01 |
| MOQ: | 1 |
| Price: | $ 8000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |
Outdoor High-power CPE Transmission Distance
Outdoor High-power CPE Transmission Distance , Long Bandwidth , High Stability , Strong 5G High-speed Communication
1. Overview
The is an outdoor 5G CPE designed for industrial applications. The device integrates a 5G modem, router, and more.The access point integrates three functions to provide users with safe, reliable, convenient and flexible wireless broadband connection; in providing network.While connecting, it can realize the construction of iot data private network, remote data access, video surveillance and other 24/7 unattended

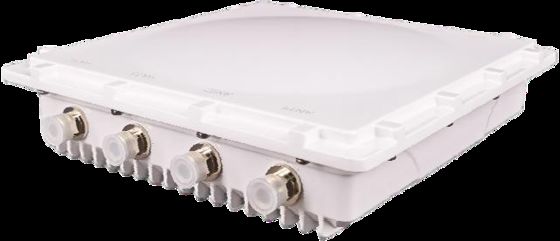

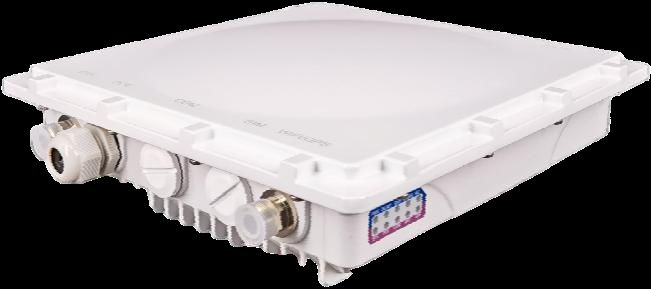

2. Product appearance
3. Key features
5G High-speed communication: The product supports R15 5G NSA/SA, with a theoretical rate of 900Mbps upstream and 2.5Gbps downstream.
High adaptability: IP65 protection class, -30~70℃ working temperature, can be used in harsh outdoor working environment.
High reliability: dual protection of software watchdog and hardware watchdog, multi-level link detection mechanism and automatic fault Recovery mechanism.
High security: supports GRE, L2GRE, PPTP, L2TP and IPSec VPN functions.
Function versatility: routing management, rate chart, network status monitoring, configuration import and export, firewall, NAT,Pat, DMZ, DHCP and other basic functions.
Easy to maintain: support SNMP, TR069 protocol and customized protocol network management software; can support remote automatic software upgrade,Add new features without replacing hardware or manually operating the terminal.
Custom development: can be customized according to industry requirements.
4. Hardware specifications
|
name |
specifications |
|
technical norms |
5G NR:3GPP Release 15 |
|
5G NR band |
5G NR NSA: n41/n78/n79 5G NR SA: n1/n28/n41/n78/n79 |
|
5G antenna interface |
External antenna, N type female head, 4 |
|
Wi-Fi frequency range |
2.4G/5.8G, support IEEE 802.11b/g/n/ac |
|
Wi-Fi antenna interface |
External antenna, N type female head, 2 |
|
Ethernet interface |
10/100/1000M adaptive, quantity 1 |
|
SIM block |
External, push-pull type, quantity: 1
Built-in eSIM interface, number 1 |
|
gorge line |
RS232:1, and RS485 share a common RJ45 interface
RS485:1, and RS232 uses a common RJ45 interface |
|
memory interface |
External TF card interface, number 1 |
|
|
|
|
Size (W x H x D) |
270mmx270mmx67mm |
|
weight |
~3Kg |
|
power supply mode |
24/48V input (configureable at factory), PoE power supply |
|
maximum power dissipation |
≤15W |
|
working temperature |
-30~70℃ |
|
Storage temperature |
-40~85℃ |
|
levels of protection |
IP65 |
