| Brand Name: | WSD |
| Model Number: | WS-BX-01 |
| MOQ: | 1 |
| Price: | $ 8000 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100 |

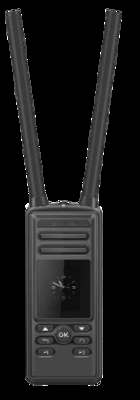

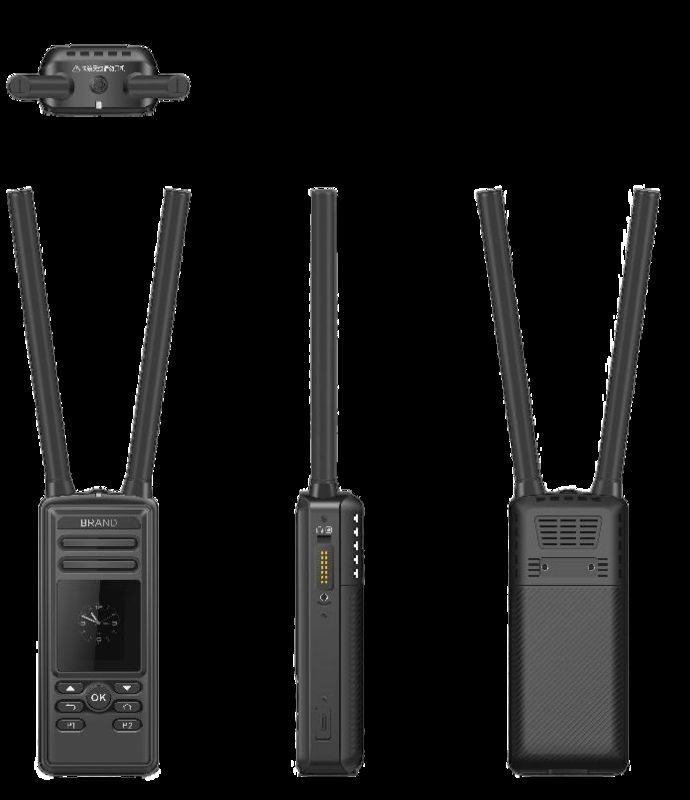

Portable self-organizing network handheld node
Self Networking Handheld MESH For Outdoor Use, Long Endurance Networking Nodes Multiple Power Banks For Charging Travel , Self-driving , Security Motorcade Fleet
This is an intelligent intercom terminal that completely eliminates the limitations of base stations and networks. Once turned on, it can automatically form a network, with each device serving as a network node and intelligent relay, allowing communication distance to extend infinitely. Even in signal free areas, we can build a robust and reliable dedicated communication network for your team, enabling voice intercom, real-time positioning, and video feedback. It is the ultimate communication guarantee for emergency rescue, outdoor exploration, and industrial inspection.
1. Product Features
(1) Suitable for outdoor use
(2) Increase battery life
(3) Can be charged using commonly used power banks that support PD and QC protocols
(4) Multiple networking nodes
(5) lightweight
(6) Rechargeable Treasure Charging
2. Product Parameters
|
Category |
Specification Parameters |
|
Equipment weight |
≤ 530g (without antenna) |
|
Machine size |
≤ 163 * 68.5 * 37.6mm (without antenna, without back clip) |
|
device interface |
1) Ad hoc network antenna interface 1 * 2 2) 1.92-inch OLED screen * 1 3) Power on/off button * 1 4) Up button * 1, Down button * 1, Confirm button * 1, Return button * 1, HOME * 1, P1 shortcut Key * 1, P2 shortcut key * 1 5) Right side pin board * 1, total 14 pins, supports: RJ45 * 1, earphones/shoulder microphone * 1 6) Left pin board * 1, total 10 pins, supports: USB (debugging), UBOOT (download) UART0 (print log) 7) Lower right interface: TYPE-C charging interface 8) Lower left interface: Micro HDMI interface |
|
Device indicator light |
charging/battery indicator light * 1 |
|
RF requirements |
Frequency range: 566~678MHz, 1420~1530MHz Maximum transmission power: 30dBm Receiving sensitivity: -102dbm@20Mhz |
|
Standby time |
not less than 4h maximum power consumption of the device not exceeding 15W |
|
Maximum transmission rate |
not less than 90Mbps |
|
Protection |
level IP67 |
