Anti Tracking 5G Signal Detector 1MHz - 8000MHz With 0.5m Accuracy

Brand Name:	WSD
Model Number:	BQX-TC-GD008
MOQ:	1
Price:	Negotiable
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

no have

Document:

Signal Source Detection.docx

Warning Mode:

LED Beep Vibration Identified Indication

Battery:

9V Packed Cell

Size:

L8.7*W 5.5*T2.4 Cm

Antenna:

82 Mm

Detecting Frequency Range:

1MHz-8000MHz

Detecting Frequencies:

GSM Phone Signal

Power Supply:

AC110-240V

Battery Low:

Battery Power Running Down

Wired Camera:

About 15 Feet

Wifi:

Digital Signal Of WiFi And IP Camera

Detecting Distance:

GSM Phone Up To 50 Feet

Highlight:

Anti Tracking 5G Signal Detector

5G Signal Detector 1MHz

5G Signal Detector 8000MHz

Product Description

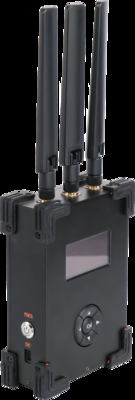

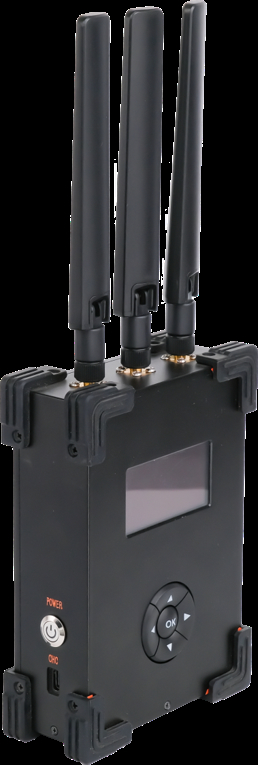

5G Signal Source Detection & Positioning Device for Anti-Tracking

Product Overview

The signal source search and positioning device is specifically designed for signal control in confidential industries including prisons, military, public security, and schools. Our 5G version covers 2G/3G/4G/5G frequency bands and includes a multi-terminal warning platform (APP/mini program/PC software) to accommodate complex network environments. The system is independently developed, ensuring security and eliminating leakage risks.

Equipment Features

Accurately captures and locates 2G/3G/4G/5G signals across all networks
Handheld operation for searching suspicious signals with positioning accuracy up to 0.5 meters
Uses communication modulation/demodulation technology to analyze weak handshake signals
Displays signal strength for easy distance estimation and quick target location
Automatically collects and analyzes spatial signals, showing frequency bands and strength
Customizable detection for specific frequency ranges
Adjustable sensitivity for accurate detection in complex signal areas

Feature Introduction

Detection and warning: Detects SIM cards in devices like phones, cameras, trackers, and alarms
Search and positioning: Uses field strength detection with 20cm accuracy in standby mode
Spectrum signal: Real-time display of communication frequency bands and signal strength
Four modes: Mute, vibration, indicator light, and sound prompt options

Equipment Parameters

Parameter	Specification
Detect the frequency band range	CDMA 824-835MHz, GSM 890-915MHz, DCS 1710-1785MHz, TD-3G 2010-2025MHz, LTE-4G1 1880-1935MHz, CDMA2000 1920-1935MHz, WCDMA-3G 1940-1955MHz, LTE-4G2 2300-2390MHz, LTE-4G3 2515-2675MHz, SA/NSA 3400-3600MHz, 4800-4900MHz
Power dissipation (W)	<10W
Detection radius	20m (mobile phone standby state)
Weight	0.9KG
Power supply mode (V)	Built-in battery 3.7V 5000mA or external Type-C 5V2A
Cruising power	>1.5H
Adjustment button	Device parameter settings
Working temperature (℃)	-40℃ to +55℃
Working humidity (%)	10% to 80%
Size (LWH mm)	380mm * 120mm * 50mm
Antenna system	Full direction, standing wave ratio <1.5
Battery life	Five hours
Way to install	Fixed/mobile portable
Levels of protection	IP32
