Vehicle Mounted Broadband Ad Hoc Network Terminal Portable Outdoor Motorcade Fleet Wireless Communication

Name: Vehicle Mounted Broadband Ad Hoc Network Terminal Portable Outdoor Motorcade Fleet Wireless Communication
Brand: WIN&SD Communication Technology Co., Ltd.
SKU: CX5210
Availability: InStock

Brand Name:	winspread
Model Number:	CX5210
MOQ:	1
Payment Terms:	L/C
Supply Ability:	200

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

no have

Document:

CX5210 Product technical sp...s.docx

Working Frequency Band:

1.4GHz(1420～1530MHz)

Number Of Channels:

2 Channel

Transmitting Power:

Maximum 40dBm

Receiver Sensitivity:

-98dBm@20MHz

Carrier Bandwidth:

1.4MHz/3MHz/5MHz/10MHz/20MHz

Modulation Mode:

QPSK,16QAM,64QAM

Highlight:

Ad Hoc Network Terminal Portable

Outdoor Ad Hoc Network Terminal

Motorcade Fleet Wireless Communication

Product Description

Vehicle-Mounted Broadband Self-Organizing Network Terminal with WiFi BT GNSS

Vehicle-Mounted Broadband Ad-Hoc Network Terminal with WiFi BT GNSS Portable , Backpack-mounted Travel , Self-driving , Security - Outdoor Motorcade FleetWireless Communication

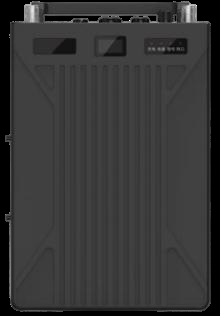

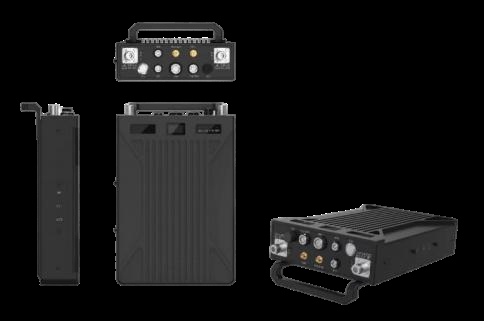

Vehicle-mounted broadband self-organizing network equipment serves as the core of on-site emergency command and communication solutions. This terminal collects and transmits voice and data on-site, suitable for mobile coverage, relay multi-hop transmission, and long-distance coverage scenarios. Its compact size, lightweight design, and high integration enable easy carrying and rapid deployment.

The device features Ethernet, USB, and audio interfaces, with a core board supporting built-in audio encoding for intercom and conference modes. Integrated WiFi, BT, and GNSS capabilities provide comprehensive connectivity. The RF front end connects through an RF transceiver with two independent transceiver channels per frequency band.

Key Features

Leading Wireless Technology

Business data throughput: 95Mbps
Visual single-hop distance up to 100km
Supported frequency band: 1.4GHz default (customizable 600MHz)
Configurable bandwidths: 1.4MHz/3MHz/5MHz/10MHz/20MHz
Dynamic bit rate adjustment: 64QAM, 16QAM, QPSK

Flexible Networking Capabilities

Supports up to 32 nodes on same frequency with 31 maximum hops
Unicast, multicast, and broadcast service support
QoS and priority support

Security & Reliability

Access authentication to prevent unauthorized access
Automatic frequency selection within/across bands for improved anti-interference
Domestic 28nm process SOC chip with self-developed waveform

Technical Specifications

Parameter	Specification	Remarks
Working frequency band	1.4GHz(1420～1530MHz)	Default 1.4GHz, customizable to 600MHz
Number of channels	2 channel
Transmitting power	Maximum 40dBm
Receiver sensitivity	-98dBm@20MHz
Carrier bandwidth	1.4MHz/3MHz/5MHz/10MHz/20MHz
Number of devices	Up to 32 nodes
Modulation mode	QPSK,16QAM,64QAM
Single jump delay	<15ms@20MHz
Data rate	Peak rate 95Mbps
Interfaces	1xRJ45, 1xUSB2.0, 1xWIFI&BT(SMA), 1xGNSS(SMA)	Supports external HDMI encoding board

Indicator Lights

Indicator	Status	Meaning
Power indicator	Green	Adequate power
	Red (steady)	20-10% power remaining
	Red (flashing)	<10% power remaining
Network status	Red (flashing)	Not networked
	Red (steady)	Weak signal (SNR<5)
	Green (flashing)	Moderate signal (SNR<15)
	Green (steady)	Strong signal (SNR≥15)

Delivery Contents
