| Nom De Marque: | WIN&SD |
| Numéro De Modèle: | QC-T1-G41-B |
| MOQ: | 2 |
| Prix: | $950 |
| Conditions De Paiement: | L / C |
| Capacité à Fournir: | 500 |

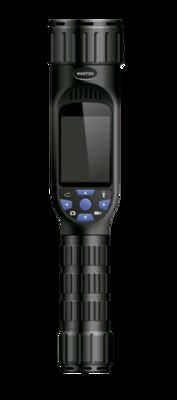

Intelligent inspection device
1. Product Overview
The QC-T1-G41-B series 4G intelligent inspection device is a multifunctional visual inspection terminal, equipped with strong light illumination, photography and video recording, voice intercom, and data communication functions to assist frontline inspectors in operation and improve work efficiency. It is equipped with the Android 10 platform, with stronger function expansion and richer applications. It can be widely applied in industries such as railway, power, fire protection, safety, and environmental protection to meet the safety management needs of daily inspections/patrols.
2. Functional characteristics
Android 10.0 Humanized Operation
Four core 2GHz high-performance processor
4G public network real-time transmission
7000mAH 14000 mAH expandable
80 ° wide-angle 500W high-definition lens
H. 264 compression encoding
IP67 1.5m anti drop
2.4-inch industrial grade capacitive touch screen
NFC module ID card recognition
Beidou/GPS dual-mode positioning
3. Specifications
|
project |
technical parameter |
|
operating system |
Android 10 |
|
CPU |
4 cores, up to 2.0GHz |
|
internal storage |
2GB RAM + 32GB ROM |
|
Storage expansion |
Supports TF card expansion, up to 256GB |
|
display screen |
2.4-inch display with 240*320 resolution and 5-point touch support |
|
camera |
500W pixels |
|
video coding |
H.264 |
|
Video resolution |
1080P/720P |
|
Fill Light |
2 white lights, 1 variable intensity light; maximum effective illumination distance of 100 meters |
|
Lighting mode |
Low light: 80lm; High light: 100lm, 150lm, 300lm |
|
fixed position |
Supports BeiDou/GPS |
|
mobile network |
Supports 4G networks |
|
SIM block |
Nano SIM |
|
PDA |
support |
|
Wi-Fi |
support |
|
NFC |
support |
|
OTG |
support |
|
key |
Open/Key, record button, camera button, PTT button, back button, confirm button, flashlight button, navigation button, etc. |
|
suona |
Built-in 2W speaker |
|
joggle |
Type-C |
|
cell |
7000mAh (14000mAh optional) |
|
cruising power |
High beams + video recording ≥8 hours; high beams alone ≥12 hours |
|
levels of protection |
IP67 |
|
ambient temperature |
Working temperature: -10℃~+55℃; Storage temperature: -30℃~+60℃ |
|
Weight dimensions |
Standard version: 550g,Φ56.6mm*266.8mm; Long battery life version: 760g,Φ56.6mm *350mm |
